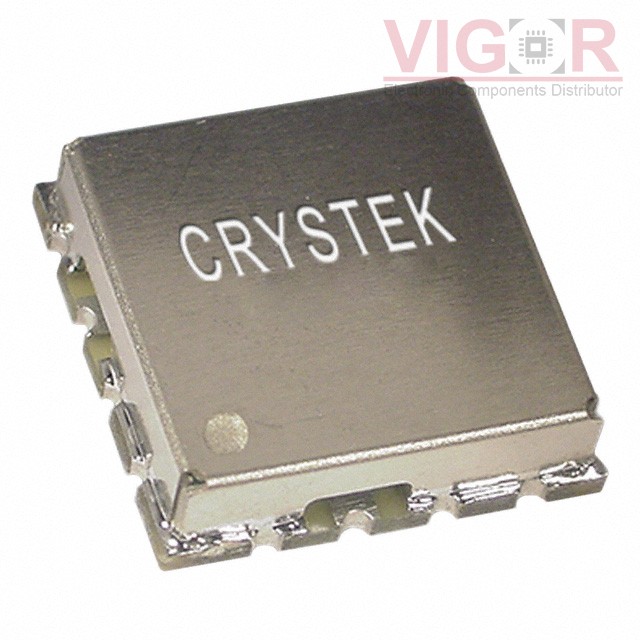

CVCO55CL-1090-1145

Part No :: CVCO55CL-1090-1145

Manufacturer: Crystek Corporation

VIGOR # :: 2675947

Description: VCO 1117.5MHZ 0.3-4.7V 12.7X12.7

Catalog: VCOs (Voltage Controlled Oscillators)

DataSheet: CVCO55CL-1090-1145 PDF

Country of origin: -

Date code: -

CVCO55CL-1090-1145 Specifications

Type	Description
Series:	CVCO55
Package:	Strip
Part Status:	Active
Frequency Range:	1090 ~ 1145MHz
Frequency - Center:	1117.5MHz
Voltage - Supply:	5V
Tuning Voltage (VDC):	0.3 V ~ 4.7 V
2nd Harmonic, Typ (dBc):	-15
Icc Max:	35mA
Pushing (MHz/V):	0.5
Power (dBm):	0 ±3
Phase Noise Typ (dBc/Hz):	-108
Operating Temperature:	-40°C ~ 85°C
Package / Case:	16-QFN, Variant
Size / Dimension:	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height:	0.150" (3.81mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Apr 10 - Apr 14 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$19.3880~~	~~$19.39~~
5	~~$18.4661~~	~~$92.33~~

Current price of CVCO55CL-1090-1145 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
