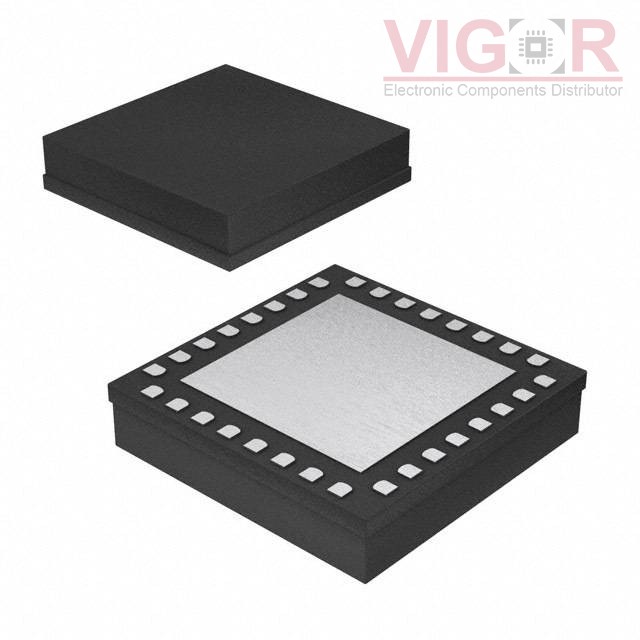

HMC509LP5

Part No :: HMC509LP5

Manufacturer: VIGOR

VIGOR # :: 2676062

Description: VOLTAGE CONTROLLED OSCILLATOR, 7

Catalog: VCOs (Voltage Controlled Oscillators)

DataSheet: HMC509LP5 PDF

Country of origin: -

Date code: -

HMC509LP5 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Frequency Range:	3.9 ~ 4.4GHz, 7.8 ~ 8.8GHz
Frequency - Center:	4.15GHz, 8.3GHz
Voltage - Supply:	5V
Tuning Voltage (VDC):	2 V ~ 13.0 V
2nd Harmonic, Typ (dBc):	10
Icc Max:	270mA
Pushing (MHz/V):	10
Power (dBm):	7.5±2.5, 12.5±2.5
Phase Noise Typ (dBc/Hz):	-115
Operating Temperature:	-40°C ~ 85°C
Package / Case:	32-VFQFN Exposed Pad, CSP
Size / Dimension:	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height:	0.039" (1.00mm)
