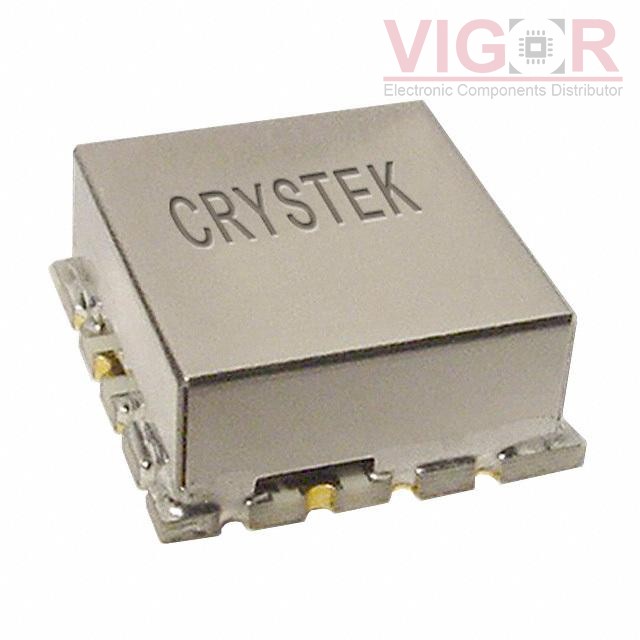

CVCO55CC-2275-2290

Part No :: CVCO55CC-2275-2290

Manufacturer: Crystek Corporation

Description: VCO 2282.5MHZ 0.5-4.5V 12.7X12.7

Catalog: VCOs (Voltage Controlled Oscillators)

DataSheet: CVCO55CC-2275-2290 PDF

Availability: 1 pieces

Current price of CVCO55CC-2275-2290 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CVCO55CC-2275-2290 Specifications

Type	Description
Series:	CVCO55
Package:	Strip
Part Status:	Active
Frequency Range:	2275 ~ 2290MHz
Frequency - Center:	2282.5MHz
Voltage - Supply:	5V
Tuning Voltage (VDC):	0.5 V ~ 4.5 V
2nd Harmonic, Typ (dBc):	-25
Icc Max:	40mA
Pushing (MHz/V):	0.5
Power (dBm):	4.5 ±2.5
Phase Noise Typ (dBc/Hz):	-115
Operating Temperature:	-40°C ~ 85°C
Package / Case:	16-QFN, Variant
Size / Dimension:	0.500" L x 0.500" W (12.70mm x 12.70mm)
Height:	0.220" (5.59mm)

Please confirm the specifications of the products when ordering.
