HMC511LP5

Part No :: HMC511LP5

Manufacturer: Linear Technology (Analog Devices, Inc.)

VIGOR # :: 4552383

Description: VCO 4.8GHZ/9.6GHZ 2-13V 5X5MM

Catalog: VCOs (Voltage Controlled Oscillators)

DataSheet: HMC511LP5 PDF

Country of origin: -

Date code: -

HMC511LP5 Specifications

Type	Description
Series:	-
Package:	Strip
Part Status:	Obsolete
Frequency Range:	4.525 ~ 5.075GHz, 9.05 ~ 10.15GHz
Frequency - Center:	4.8GHz, 9.6GHz
Voltage - Supply:	5V
Tuning Voltage (VDC):	2 V ~ 13.0 V
2nd Harmonic, Typ (dBc):	15
Icc Max:	300mA
Pushing (MHz/V):	15
Power (dBm):	8±3, 12.5±3.5
Phase Noise Typ (dBc/Hz):	-115
Operating Temperature:	-40°C ~ 85°C
Package / Case:	32-VFQFN Exposed Pad, CSP
Size / Dimension:	0.197" L x 0.197" W (5.00mm x 5.00mm)
Height:	0.039" (1.00mm)

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 0

Shipped from

HK warehouse

Expected Shipping Date

Jan 31 - Feb 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price

Current price of HMC511LP5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

MAX2624EUA-T

IC VCO OSCILLATOR UMAX

HMC508LP5

VCO 3.857GHZ/7.75GHZ 2-13V 5X5MM

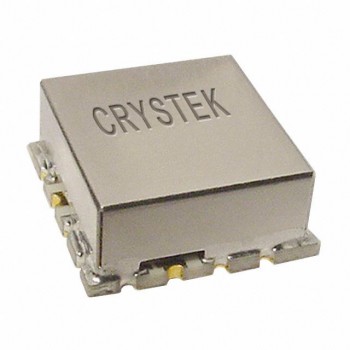

CVCO55CC-3345-3955
