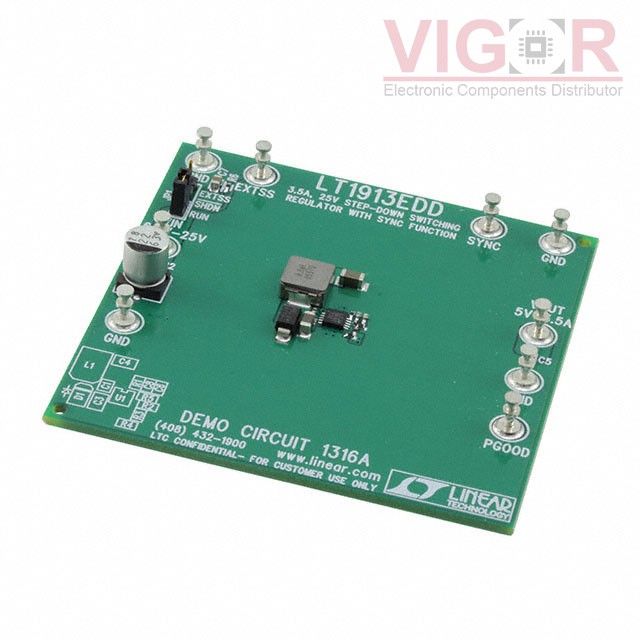

DC1316A

Image is for reference,
please contact us to get the real picture

Part No :: DC1316A

Manufacturer: Linear Technology (Analog Devices, Inc.)

Description: BOARD EVAL FOR LT1913EDD

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

DataSheet: DC1316A PDF

Availability: 2 pieces

Unit Price: ~~$125.00000~~

Current price of DC1316A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DC1316A Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Main Purpose:	DC/DC, Step Down
Outputs and Type:	1, Non-Isolated
Power - Output:	-
Voltage - Output:	5V
Current - Output:	3.5A
Voltage - Input:	6.5V ~ 25V
Regulator Topology:	Buck
Frequency - Switching:	800kHz
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	LT1913

Please confirm the specifications of the products when ordering.
