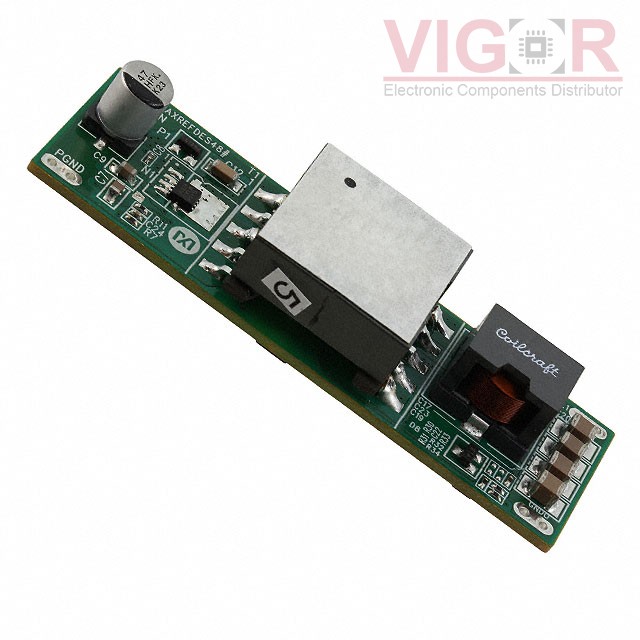

MAXREFDES48#

Part No :: MAXREFDES48#

Manufacturer: Maxim Integrated

VIGOR # :: 4005811

Description: REF DESIGN EFD20 TRANSFORMER PS

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

DataSheet: MAXREFDES48# PDF

Country of origin: -

Date code: -

MAXREFDES48# Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Main Purpose:	DC/DC, Step Down
Outputs and Type:	1, Isolated
Power - Output:	40 W
Voltage - Output:	12V
Current - Output:	3.5A
Voltage - Input:	18V ~ 36V
Regulator Topology:	Forward Converter
Frequency - Switching:	250kHz
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	MAX17599
