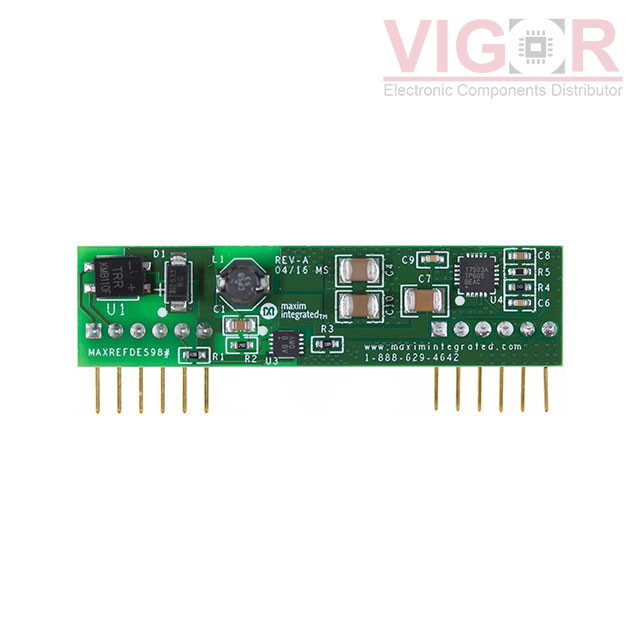

MAXREFDES98#

Part No :: MAXREFDES98#

Manufacturer: Maxim Integrated

VIGOR # :: 4006687

Description: REF DESIGN POE MAX5969A MAX17503

Catalog: Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS

DataSheet: MAXREFDES98# PDF

Country of origin: -

Date code: -

MAXREFDES98# Specifications

Type	Description
Series:	-
Package:	Box
Part Status:	Active
Main Purpose:	Special Purpose DC/DC, Power Over Ethernet
Outputs and Type:	1, Non-Isolated
Power - Output:	12.5 W
Voltage - Output:	5V
Current - Output:	2.5A
Voltage - Input:	36V ~ 57V
Regulator Topology:	Buck
Frequency - Switching:	300kHz
Board Type:	Fully Populated
Supplied Contents:	Board(s)
Utilized IC / Part:	MAX5969A, MAX17503
