Current price of 19031175A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

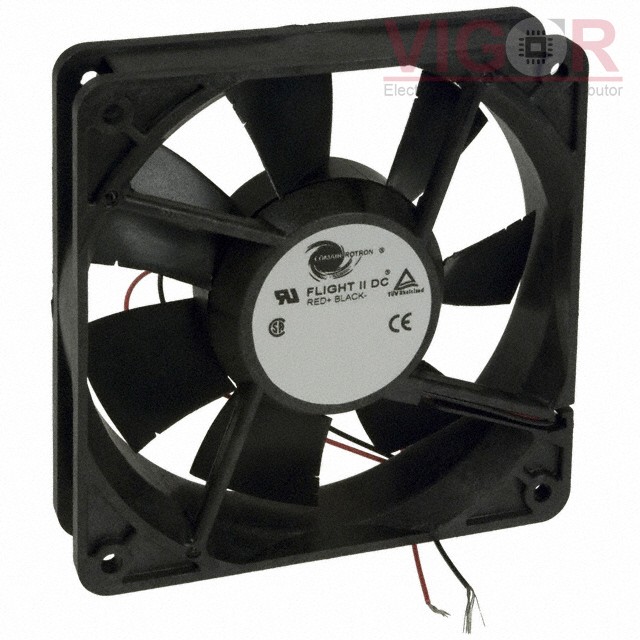

Type | Description |
---|---|
Series: | Flight II 120 |
Package: | - |
Part Status: | Obsolete |
Voltage - Rated: | 24VDC |
Size / Dimension: | Square - 120.1mm L x 120.1mm H |
Width: | 25.60mm |
Air Flow: | 90.0 CFM (2.52m³/min) |
Static Pressure: | 0.211 in H2O (52.6 Pa) |
Bearing Type: | Ball |
Fan Type: | Tubeaxial |
Features: | - |
Noise: | 42.9dB(A) |
Power (Watts): | 4 W |
RPM: | 2940 RPM |
Termination: | 2 Wire Leads |
Ingress Protection: | - |
Operating Temperature: | - |
Approval Agency: | - |
Weight: | 0.441 lb (200.03 g) |
