ATS-PCBT1090

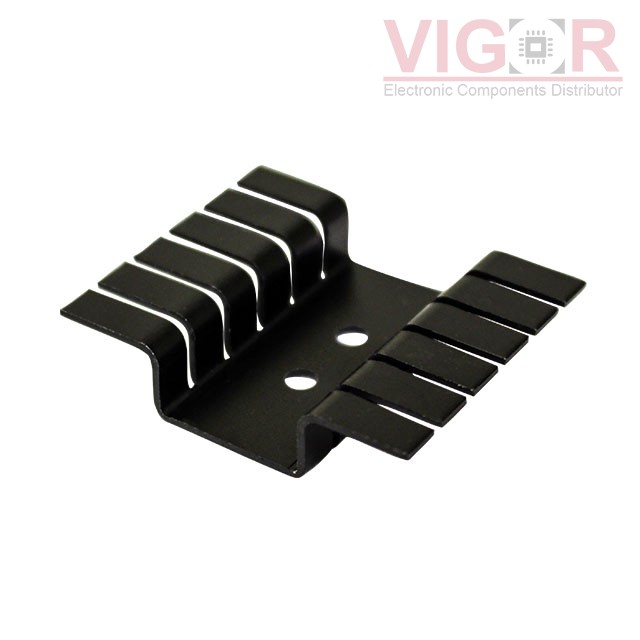

Image is for reference,
please contact us to get the real picture

Part No :: ATS-PCBT1090

Manufacturer: Advanced Thermal Solutions, Inc.

Description: HEATSINK TO-220 (DUAL)

Catalog: Thermal - Heat Sinks

Shipped from: HK warehouse

Expected Shipping Date: Nov 05 - Nov 09 2025

DataSheet: ATS-PCBT1090 PDF

Availability: 897 pieces

Unit Price: ~~$0.60000~~

Current price of ATS-PCBT1090 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ATS-PCBT1090 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Board Level
Package Cooled:	TO-220 (Dual)
Attachment Method:	Bolt On
Shape:	Rectangular, Fins
Length:	1.450" (36.83mm)
Width:	1.750" (44.45mm)
Diameter:	-
Fin Height:	0.375" (9.52mm)
Power Dissipation @ Temperature Rise:	-
Thermal Resistance @ Forced Air Flow:	3.00°C/W @ 200 LFM
Thermal Resistance @ Natural:	9.60°C/W
Material:	Aluminum
Material Finish:	Black Anodized

Please confirm the specifications of the products when ordering.
