ATS-PCBT1077

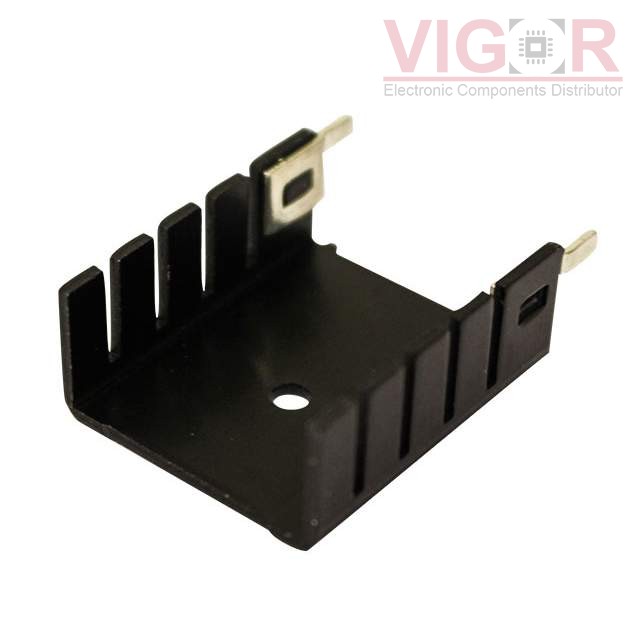

Image is for reference,
please contact us to get the real picture

Part No :: ATS-PCBT1077

Manufacturer: Advanced Thermal Solutions, Inc.

Description: HEATSINK TO-220 BLACK W/TAB

Catalog: Thermal - Heat Sinks

Shipped from: HK warehouse

Expected Shipping Date: Nov 12 - Nov 16 2025

DataSheet: ATS-PCBT1077 PDF

Availability: 0 pieces

Unit Price: ~~$0.96000~~

Current price of ATS-PCBT1077 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ATS-PCBT1077 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Board Level, Vertical
Package Cooled:	TO-220
Attachment Method:	Bolt On and PC Pin
Shape:	Rectangular, Fins
Length:	1.180" (29.97mm)
Width:	1.000" (25.40mm)
Diameter:	-
Fin Height:	0.500" (12.70mm)
Power Dissipation @ Temperature Rise:	-
Thermal Resistance @ Forced Air Flow:	7.30°C/W @ 200 LFM
Thermal Resistance @ Natural:	12.50°C/W
Material:	Aluminum
Material Finish:	Black Anodized

Please confirm the specifications of the products when ordering.
