ATS-PCBT1093

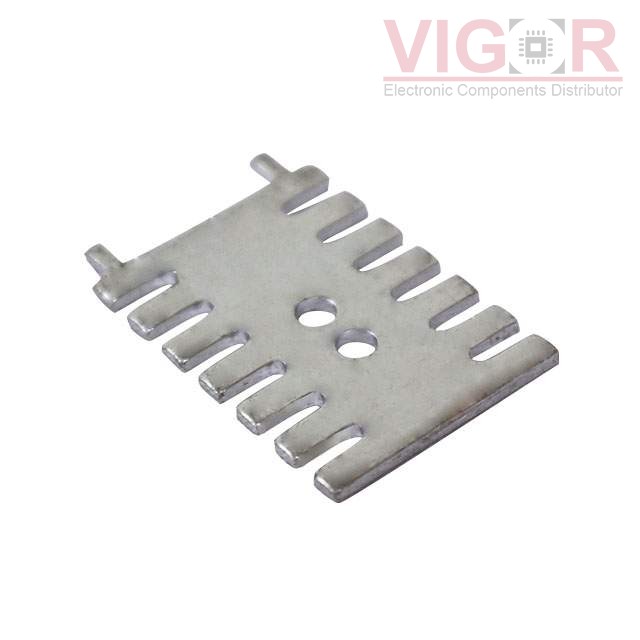

Image is for reference,
please contact us to get the real picture

Part No :: ATS-PCBT1093

Manufacturer: Advanced Thermal Solutions, Inc.

Description: HEATSINK TO-220 COPPER

Catalog: Thermal - Heat Sinks

Shipped from: HK warehouse

Expected Shipping Date: Oct 17 - Oct 21 2025

DataSheet: ATS-PCBT1093 PDF

Availability: 552 pieces

Unit Price: ~~$1.33000~~

Current price of ATS-PCBT1093 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ATS-PCBT1093 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
Type:	Board Level, Vertical
Package Cooled:	TO-220
Attachment Method:	Bolt On and Board Mounts
Shape:	Rectangular, Fins
Length:	1.252" (31.80mm)
Width:	0.913" (23.20mm)
Diameter:	-
Fin Height:	0.041" (1.05mm)
Power Dissipation @ Temperature Rise:	-
Thermal Resistance @ Forced Air Flow:	14.00°C/W @ 200 LFM
Thermal Resistance @ Natural:	23.00°C/W
Material:	Copper
Material Finish:	Tin

Please confirm the specifications of the products when ordering.
