PHBC14-1R2A0120V

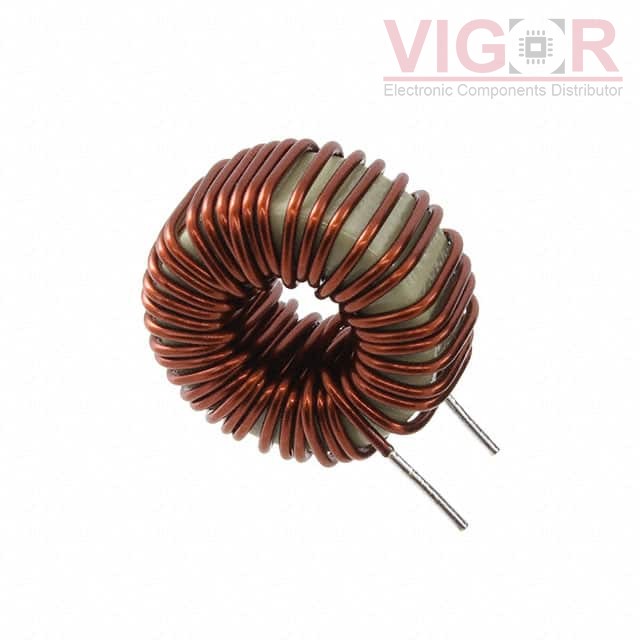

Image is for reference,
please contact us to get the real picture

Part No :: PHBC14-1R2A0120V

Manufacturer: KEMET

Description: NMC 111.1UH 8A 0.0299OHM TH

Catalog: Common Mode Chokes

DataSheet: PHBC14-1R2A0120V PDF

Availability: 118 pieces

Unit Price: ~~$11.49000~~

Current price of PHBC14-1R2A0120V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PHBC14-1R2A0120V Specifications

Type	Description
Series:	PHBC
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	120 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	8A
DC Resistance (DCR) (Max):	-
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.339" Dia (34.00mm)
Height (Max):	1.339" (34.00mm)
Package / Case:	Vertical, No Base, 2 PC Pin
