LCF160804A750TG

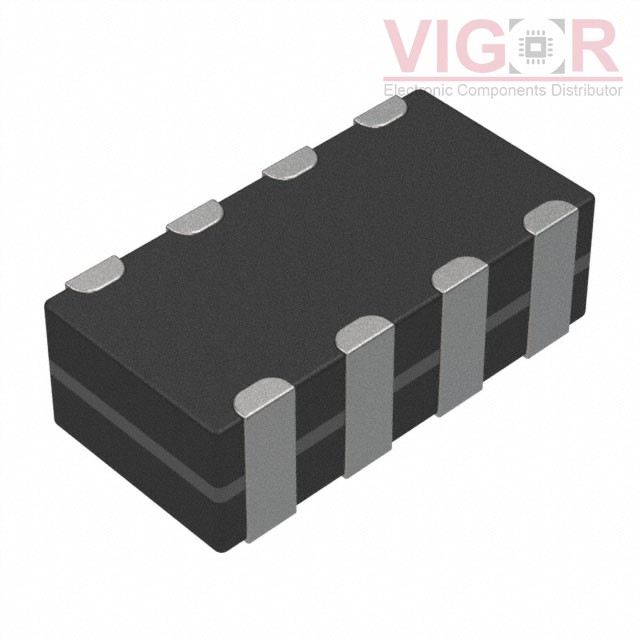

Image is for reference,
please contact us to get the real picture

Part No :: LCF160804A750TG

Manufacturer: Wickmann / Littelfuse

Description: CMC 2LN 100MA 75 OHM SMD

Catalog: Common Mode Chokes

DataSheet: LCF160804A750TG PDF

Availability: 0 pieces

Unit Price: ~~$0.88000~~

Current price of LCF160804A750TG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

LCF160804A750TG Specifications

Type	Description
Series:	LCF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
Filter Type:	Signal Line
Number of Lines:	4
Impedance @ Frequency:	75 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	6Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.063" L x 0.032" W (1.60mm x 0.80mm)
Height (Max):	0.022" (0.55mm)
Package / Case:	0603 (1608 Metric), 8 Lead
