Part No :

ACM2520-801-3P

Manufacturer
TDK Corporation
VIGOR # :

4036085

Description

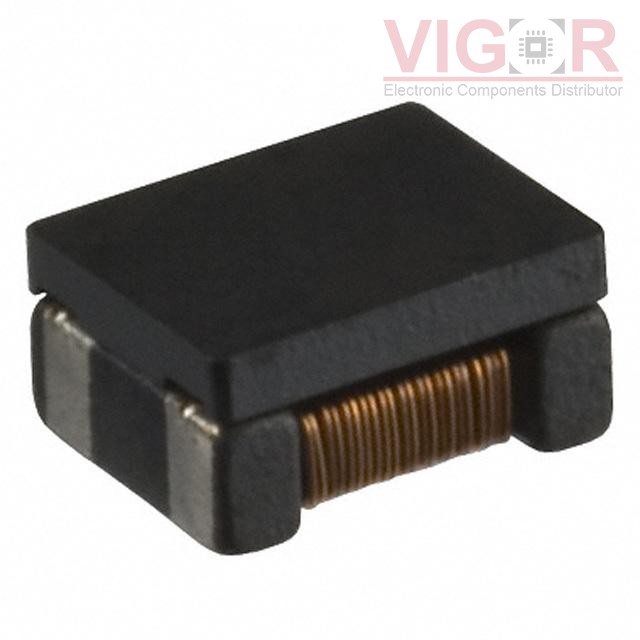

CMC 150MA 3LN 800 OHM SMD
Catalog
Common Mode Chokes
DataSheet
ACM2520-801-3P PDF
Country of origin
-
Date code
-
ads
Type Description
Series:ACM
Package:Tape & Reel (TR)
Part Status:Not For New Designs
Filter Type:Signal Line
Number of Lines:3
Impedance @ Frequency:800 Ohms @ 100 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):150mA
DC Resistance (DCR) (Max):1.6Ohm
Voltage Rating - DC:20V
Voltage Rating - AC:-
Operating Temperature:-25°C ~ 85°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Surface Mount
Size / Dimension:0.098" L x 0.079" W (2.50mm x 2.00mm)
Height (Max):0.051" (1.30mm)
Package / Case:1008 (2520 Metric), 6 PC Pad
