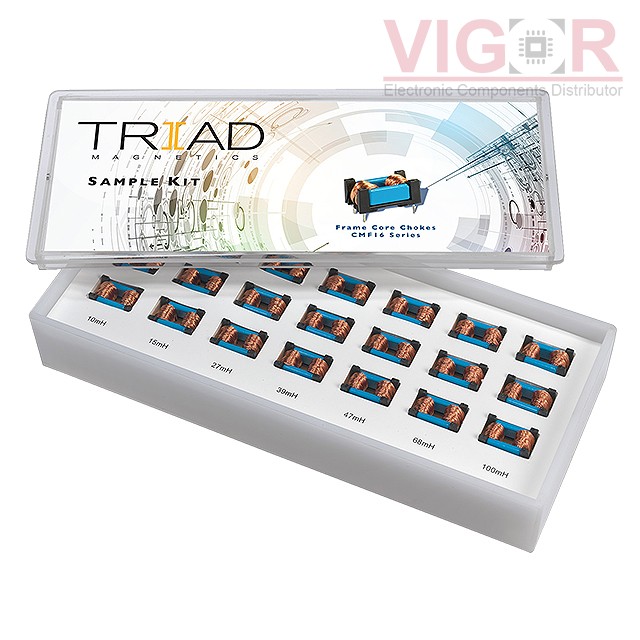

CMF16-103161-B

Part No :: CMF16-103161-B

Manufacturer: Triad Magnetics

Description: CMC 10MH 1.6A 2LN TH

Catalog: Common Mode Chokes

DataSheet: CMF16-103161-B PDF

Availability: 465400 pieces

Current price of CMF16-103161-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CMF16-103161-B Specifications

Type	Description
Series:	CMF
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	10 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.6A
DC Resistance (DCR) (Max):	320mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.965" L x 0.571" W (24.50mm x 14.50mm)
Height (Max):	0.531" (13.50mm)
Package / Case:	Vertical, 4 PC Pin
