ET2825-025

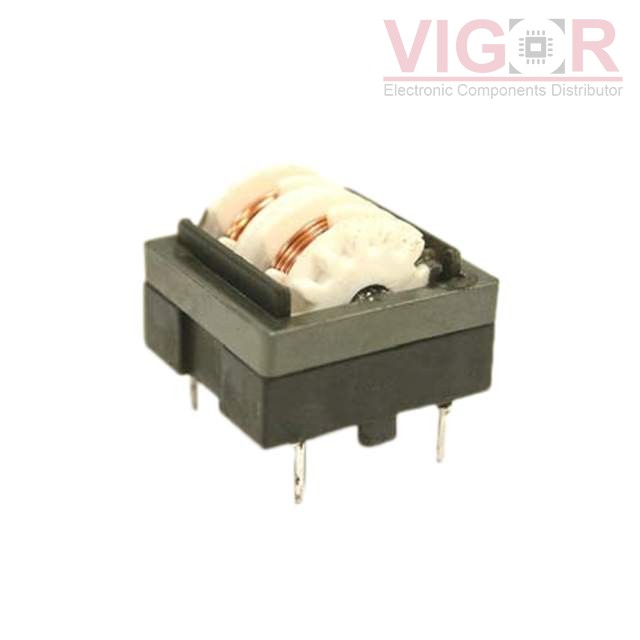

Image is for reference,
please contact us to get the real picture

Part No :: ET2825-025

Manufacturer: Triad Magnetics

Description: CMC 120MH 500MA 2LN TH

Catalog: Common Mode Chokes

Shipped from: HK warehouse

Expected Shipping Date: Sep 29 - Oct 03 2025

DataSheet: ET2825-025 PDF

Availability: 0 pieces

Unit Price: ~~$4.70000~~

Current price of ET2825-025 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ET2825-025 Specifications

Type	Description
Series:	ET
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	120 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	2.6Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-20°C ~ 105°C
Ratings:	-
Approval Agency:	CSA, IEC, UL
Features:	ESD
Mounting Type:	Through Hole
Size / Dimension:	1.181" L x 1.181" W (30.00mm x 30.00mm)
Height (Max):	0.984" (25.00mm)
Package / Case:	Horizontal, 4 PC Pin
