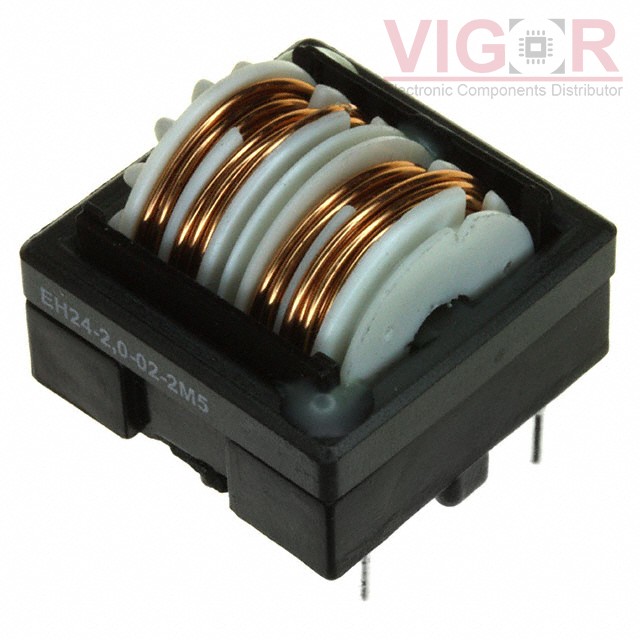

EH24-2.0-02-2M5

Part No :: EH24-2.0-02-2M5

Manufacturer: Schaffner EMC, Inc.

Description: CMC 2.5MH 2A 2LN TH

Catalog: Common Mode Chokes

DataSheet: EH24-2.0-02-2M5 PDF

Availability: 0 pieces

Current price of EH24-2.0-02-2M5 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EH24-2.0-02-2M5 Specifications

Type	Description
Series:	EH
Package:	Tube
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.5 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2A
DC Resistance (DCR) (Max):	62mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.945" L x 0.945" W (24.00mm x 24.00mm)
Height (Max):	0.827" (21.00mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
