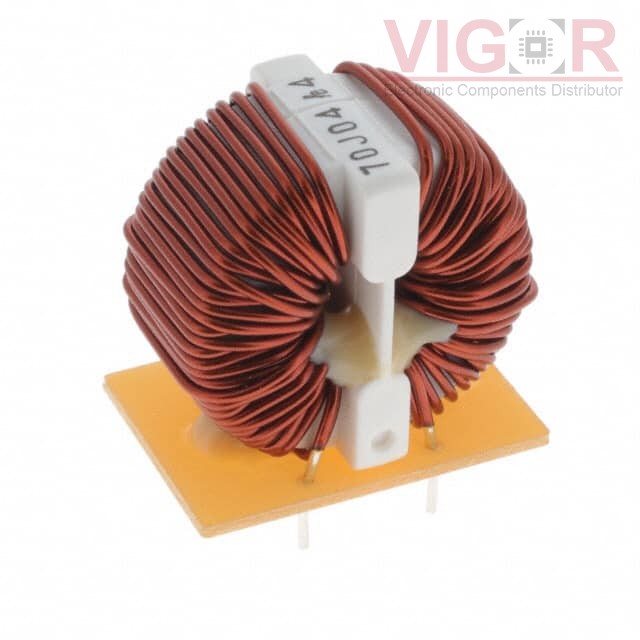

SC22-05-70J

Part No :: SC22-05-70J

Manufacturer: KEMET

Description: CMC 7MH,5A, 0.06OHM

Catalog: Common Mode Chokes

DataSheet: SC22-05-70J PDF

Availability: 129 pieces

Current price of SC22-05-70J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SC22-05-70J Specifications

Type	Description
Series:	*
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	7 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5A
DC Resistance (DCR) (Max):	60mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.102" L x 0.728" W (28.00mm x 18.50mm)
Height (Max):	1.142" (29.00mm)
Package / Case:	Vertical, 4 PC Pin
