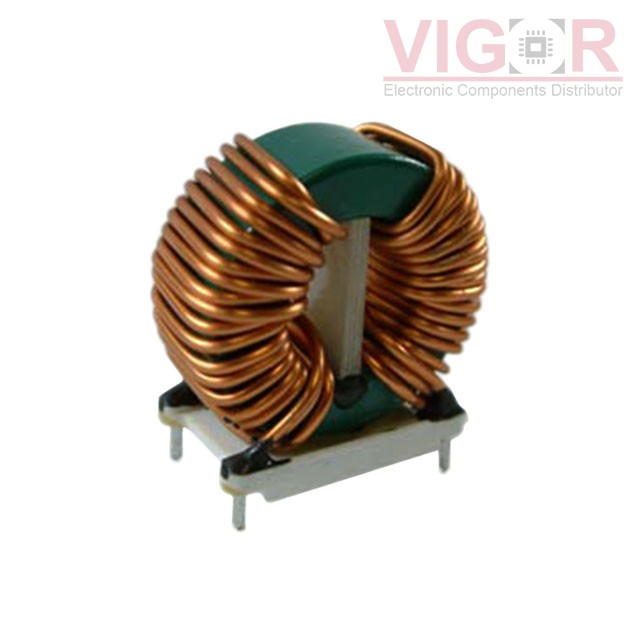

CMT-8119-B

Part No :: CMT-8119-B

Manufacturer: Triad Magnetics

Description: CMC 4MH 14.5A 2LN TH

Catalog: Common Mode Chokes

DataSheet: CMT-8119-B PDF

Availability: 4680 pieces

Current price of CMT-8119-B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CMT-8119-B Specifications

Type	Description
Series:	CMT
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	4 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	14.5A
DC Resistance (DCR) (Max):	12mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	1500V (1.5kV)
Operating Temperature:	-55°C ~ 105°C
Ratings:	-
Approval Agency:	CSA, IEC, UL, VDE
Features:	ESD
Mounting Type:	Through Hole
Size / Dimension:	1.700" L x 0.900" W (43.18mm x 22.86mm)
Height (Max):	1.650" (41.91mm)
Package / Case:	Vertical, 4 PC Pin
