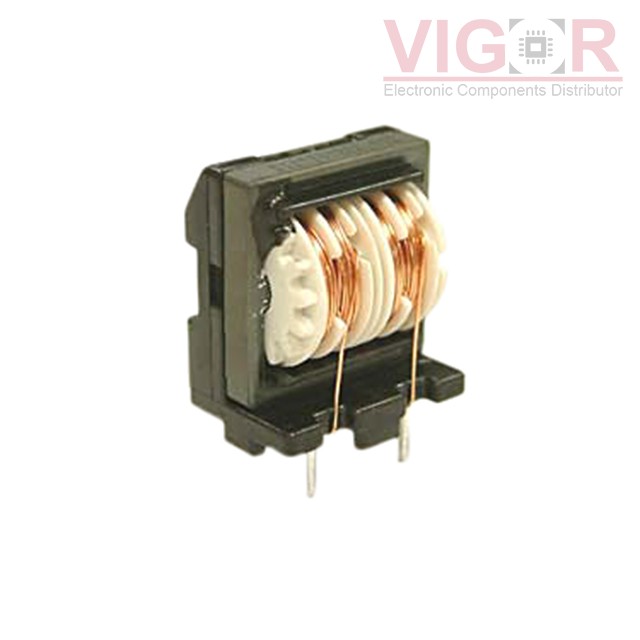

ET3542-052

Part No :: ET3542-052

Manufacturer: Triad Magnetics

Description: CMC 22MH 1.8A 2LN TH

Catalog: Common Mode Chokes

DataSheet: ET3542-052 PDF

Availability: 0 pieces

Current price of ET3542-052 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ET3542-052 Specifications

Type	Description
Series:	ET
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	22 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.8A
DC Resistance (DCR) (Max):	400mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-20°C ~ 105°C
Ratings:	-
Approval Agency:	CSA, IEC, UL
Features:	ESD
Mounting Type:	Through Hole
Size / Dimension:	1.496" L x 1.024" W (38.00mm x 26.00mm)
Height (Max):	1.772" (45.00mm)
Package / Case:	Vertical, 4 PC Pin
