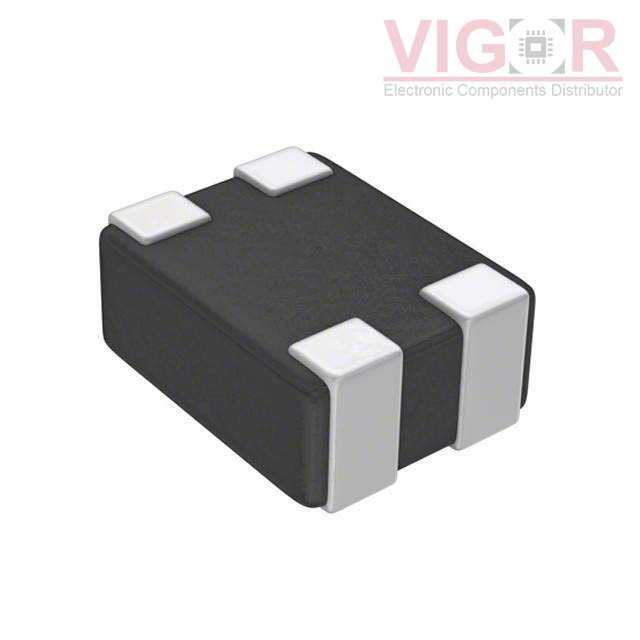

MCZ1210AD900T002

Part No :: MCZ1210AD900T002

Manufacturer: TDK Corporation

Description: CMC 500MA 2LN 90 OHM SMD

Catalog: Common Mode Chokes

DataSheet: MCZ1210AD900T002 PDF

Availability: 2529 pieces

Current price of MCZ1210AD900T002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MCZ1210AD900T002 Specifications

Type	Description
Series:	MCZ
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	90 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	200mOhm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.049" L x 0.039" W (1.25mm x 1.00mm)
Height (Max):	0.024" (0.60mm)
Package / Case:	0504 (1210 Metric), 4 Lead
