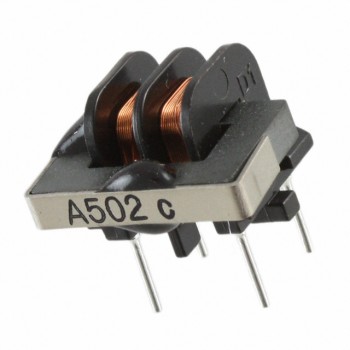

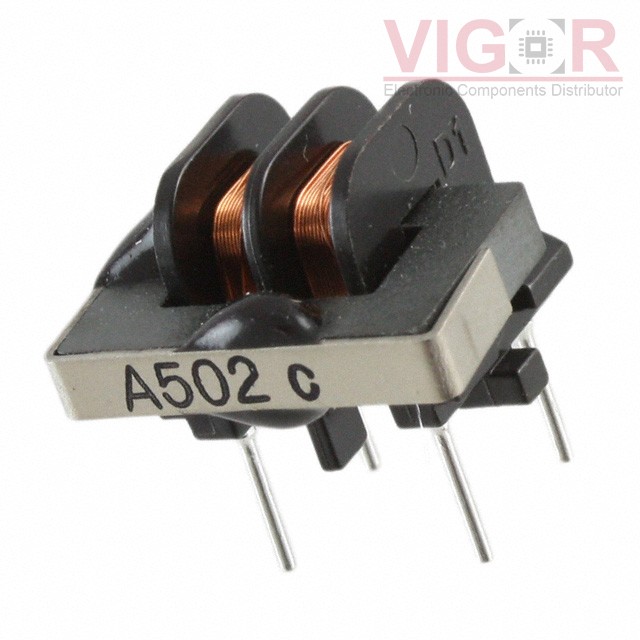

TLF9UAH502WR32K1

Part No :: TLF9UAH502WR32K1

Manufacturer: TAIYO YUDEN

Description: COMMON MODE CHOKE 320MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: TLF9UAH502WR32K1 PDF

Availability: 411 pieces

Current price of TLF9UAH502WR32K1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TLF9UAH502WR32K1 Specifications

Type	Description
Series:	TLF9
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	320mA
DC Resistance (DCR) (Max):	2.5Ohm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.669" L x 0.591" W (17.00mm x 15.00mm)
Height (Max):	0.472" (12.00mm)
Package / Case:	Vertical, 4 PC Pin
