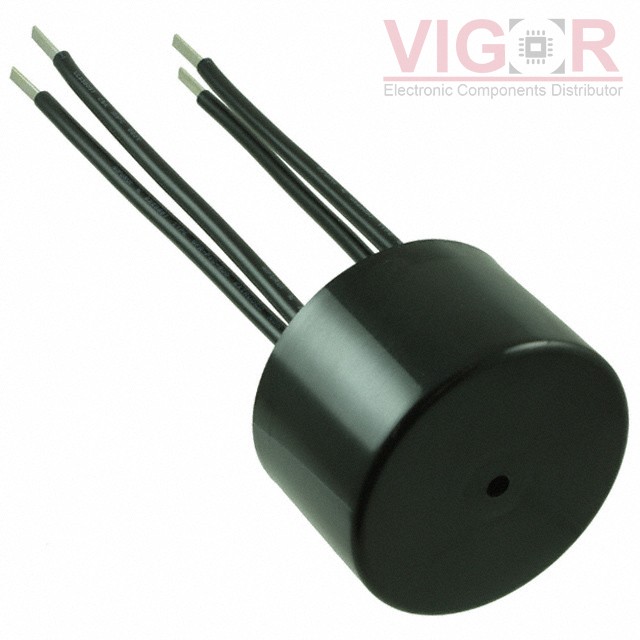

RD8127-16-12M0

Part No :: RD8127-16-12M0

Manufacturer: Schaffner EMC, Inc.

Description: CMC 12MH 16A 2LN TH

Catalog: Common Mode Chokes

DataSheet: RD8127-16-12M0 PDF

Availability: 5 pieces

Current price of RD8127-16-12M0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RD8127-16-12M0 Specifications

Type	Description
Series:	RD
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	12 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	16A (Typ)
DC Resistance (DCR) (Max):	20.05mOhm (Typ)
Voltage Rating - DC:	850V
Voltage Rating - AC:	600V
Operating Temperature:	-25°C ~ 110°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	3.150" L x 3.150" W (80.00mm x 80.00mm)
Height (Max):	1.988" (50.50mm)
Package / Case:	Horizontal, 4 PC Pin
