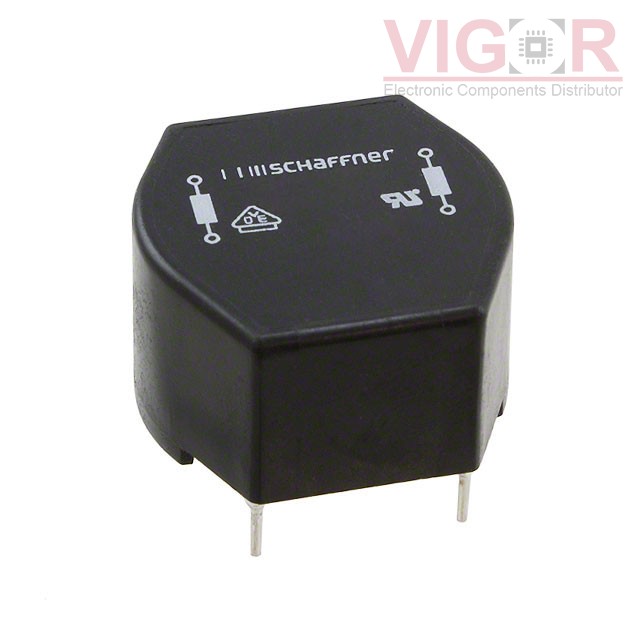

RN122-0.5-02-56M

Image is for reference,
please contact us to get the real picture

Part No :: RN122-0.5-02-56M

Manufacturer: Schaffner EMC, Inc.

Description: CMC 56MH 500MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: RN122-0.5-02-56M PDF

Availability: 11 pieces

Unit Price: ~~$2.34000~~

Current price of RN122-0.5-02-56M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RN122-0.5-02-56M Specifications

Type	Description
Series:	RN
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	56 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	500mA
DC Resistance (DCR) (Max):	1.8Ohm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 100°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.886" L x 0.846" W (22.50mm x 21.50mm)
Height (Max):	0.531" (13.50mm)
Package / Case:	Horizontal, 4 PC Pin
