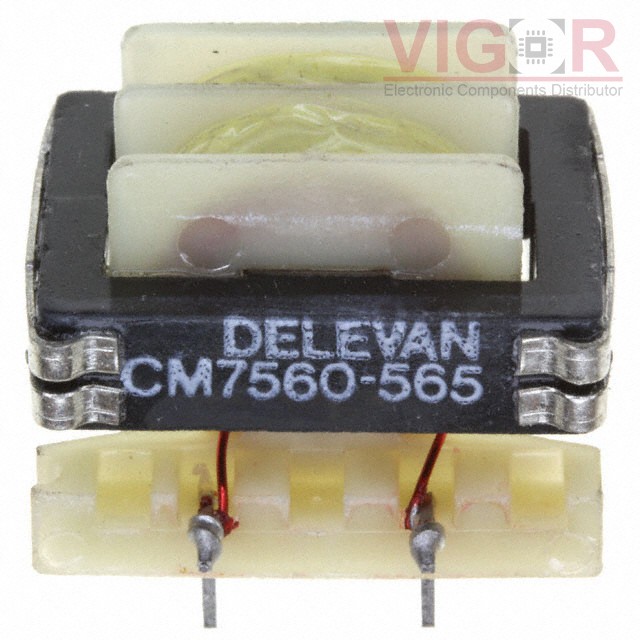

CM7560-565

Product image
Product thumb
Part No :

CM7560-565

Manufacturer
API Delevan
VIGOR # :

4036447

Description
CMC 5.6MH 880MA 2LN TH
Catalog
Common Mode Chokes
DataSheet
CM7560-565 PDF
Country of origin
-
Date code
-
ads
CM7560-565 Specifications
Type Description
Series:CM7560
Package:Bulk
Part Status:Active
Filter Type:-
Number of Lines:2
Impedance @ Frequency:-
Inductance @ Frequency:5.6 mH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):880mA
DC Resistance (DCR) (Max):500mOhm
Voltage Rating - DC:-
Voltage Rating - AC:-
Operating Temperature:-55°C ~ 125°C
Ratings:-
Approval Agency:-
Features:-
Mounting Type:Through Hole
Size / Dimension:1.071" L x 0.858" W (27.20mm x 21.80mm)
Height (Max):0.861" (21.86mm)
Package / Case:Vertical, 4 PC Pin
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 0
Shipped from
HK warehouse
Expected Shipping Date
Dec 28 - Jan 01 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $14.38 $14.38
500 $7.51 $3 752.96

Current price of CM7560-565 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products
B82791H2501N001

B82791H2501N001

CMC 10MH 500MA 2LN TH

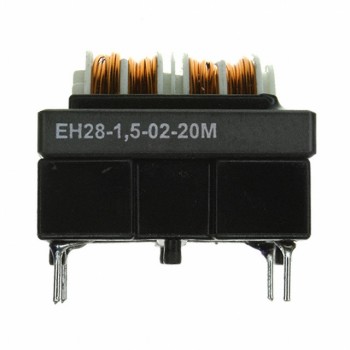

EH28-1.5-02-20M

EH28-1.5-02-20M

CMC 20MH 1.5A 2LN TH

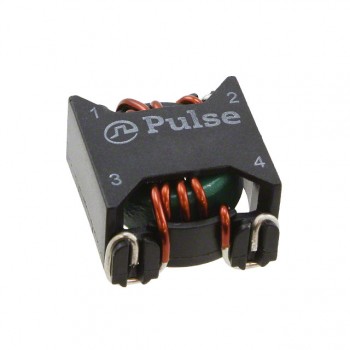

PA2753NL
