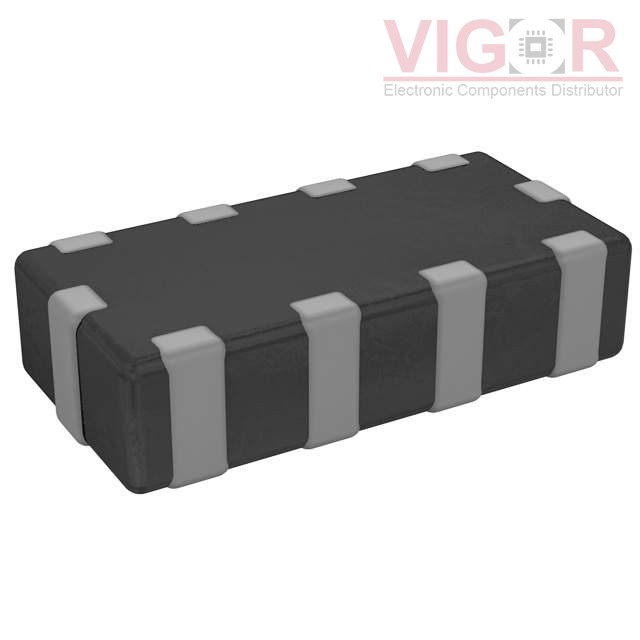

Part No :

EXC-18CS900U

Manufacturer
Panasonic
VIGOR # :

4036469

Description
CMC 100MA 4LN 90 OHM SMD ESD
Catalog
Common Mode Chokes
DataSheet
EXC-18CS900U PDF
Country of origin
-
Date code
-
ads
Type Description
Series:EXC18
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Filter Type:Signal Line
Number of Lines:4
Impedance @ Frequency:90 Ohms @ 100 MHz
Inductance @ Frequency:-
Frequency Coupled to Inductance @ Frequency:-
Current Rating (Max):100mA
DC Resistance (DCR) (Max):3Ohm (Typ)
Voltage Rating - DC:5V
Voltage Rating - AC:-
Operating Temperature:-40°C ~ 85°C
Ratings:-
Approval Agency:-
Features:ESD
Mounting Type:Surface Mount
Size / Dimension:0.063" L x 0.031" W (1.60mm x 0.80mm)
Height (Max):0.020" (0.50mm)
Package / Case:0603 (1608 Metric)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Shipped from
HK warehouse
Expected Shipping Date
Dec 29 - Jan 02 2025
Pricing(USD)
Quantity Unit Price Ext. Price
1 $0.34 $0.34
5000 $0.12 $603.20
10000 $0.12 $1 168.70
25000 $0.11 $2 827.50
50000 $0.11 $5 466.50

Current price of EXC-18CS900U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

SN8D-300

SN8D-300

NMC 45.0UH 2.0A 0.0520 OHM TH

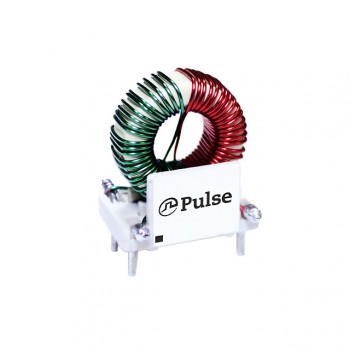

PA3747.105NL

PA3747.105NL

COMMON MODE CHOKE 5A 2LN TH

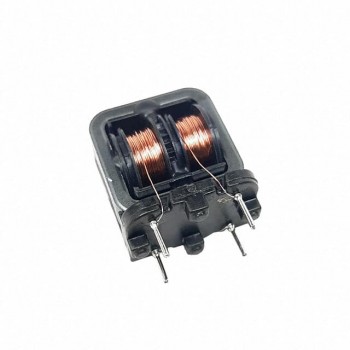

SSR21NV-M041500
