7446632002

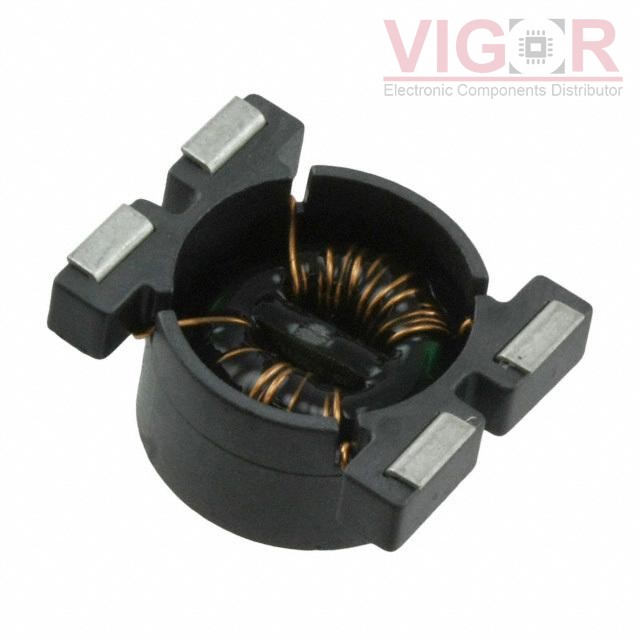

Image is for reference,
please contact us to get the real picture

Part No :: 7446632002

Manufacturer: Würth Elektronik Midcom

Description: CMC 2.2MH 2.75A 2LN SMD

Catalog: Common Mode Chokes

DataSheet: 7446632002 PDF

Availability: 6 pieces

Unit Price: ~~$6.05000~~

Current price of 7446632002 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

7446632002 Specifications

Type	Description
Series:	WE-LF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.2 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.75A
DC Resistance (DCR) (Max):	100mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.917" L x 0.728" W (23.30mm x 18.50mm)
Height (Max):	0.453" (11.50mm)
Package / Case:	Horizontal, 4 PC Pad
