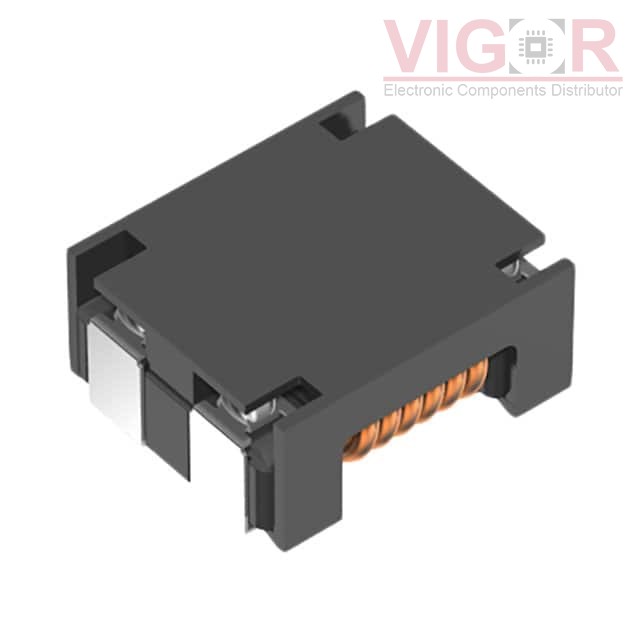

LCV70-701-2PL-TL00

Part No :: LCV70-701-2PL-TL00

Manufacturer: TDK Corporation

VIGOR # :: 4036562

Description: COMMON MODE FILTERS FOR POWER LI

Catalog: Common Mode Chokes

DataSheet: LCV70-701-2PL-TL00 PDF

Country of origin: -

Date code: -

LCV70-701-2PL-TL00 Specifications

Type	Description
Series:	LCV70
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	700 Ohms @ 100 MHz
Inductance @ Frequency:	7.5 µH @ 1 MHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	4A
DC Resistance (DCR) (Max):	15mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	AEC-Q200
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max):	0.138" (3.50mm)
Package / Case:	Horizontal, 4 PC Pad
