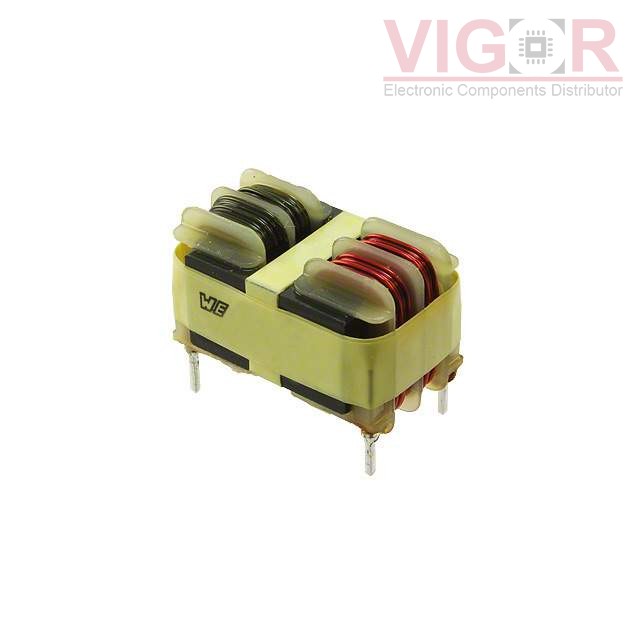

750341632

Part No :: 750341632

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 4036743

Description: CMC 3.3MH 2A 2LN TH

Catalog: Common Mode Chokes

DataSheet: 750341632 PDF

Country of origin: -

Date code: -

750341632 Specifications

Type	Description
Series:	MID-D16US
Package:	Tray
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3.3 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2A
DC Resistance (DCR) (Max):	190mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.900" L x 0.550" W (22.86mm x 13.97mm)
Height (Max):	0.585" (14.86mm)
Package / Case:	Horizontal, 4 PC Pin

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 16

Shipped from

HK warehouse

Expected Shipping Date

Oct 04 - Oct 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.7400~~	~~$3.74~~
25	~~$3.2372~~	~~$80.93~~
100	~~$2.8560~~	~~$285.60~~
250	~~$2.6660~~	~~$666.50~~
500	~~$2.3800~~	~~$1 190.00~~
1000	~~$2.2850~~	~~$2 285.00~~
2500	~~$2.1900~~	~~$5 475.00~~

Current price of 750341632 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

LCF121002C900TG

CMC 2LN 150MA 90 OHM SMD

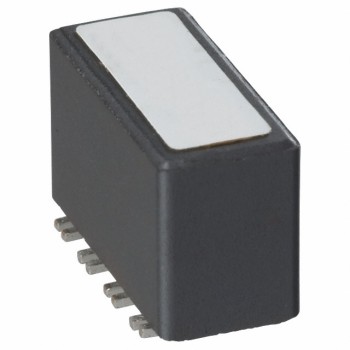

CM5022R151R-10

CMC 5A 8LN 150 OHM SMD

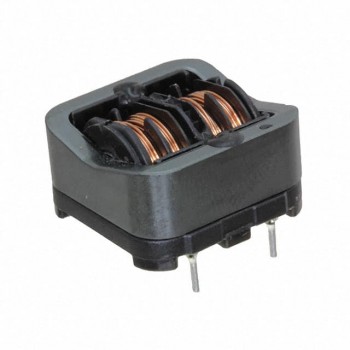

SSR21NHS-15082
