B82724V2203U040

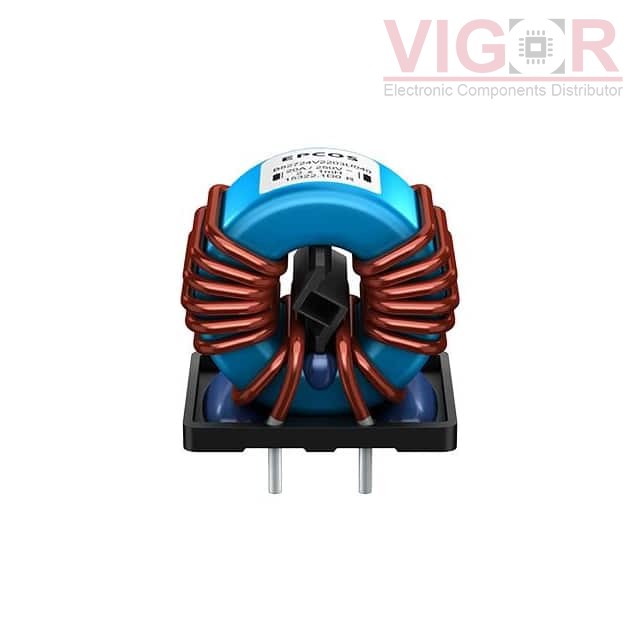

Image is for reference,
please contact us to get the real picture

Part No :: B82724V2203U040

Manufacturer: TDK EPCOS

Description: RING CORE CHOKE 2X1MH 20A/60C

Catalog: Common Mode Chokes

DataSheet: B82724V2203U040 PDF

Availability: 148 pieces

Unit Price: ~~$9.20000~~

Current price of B82724V2203U040 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82724V2203U040 Specifications

Type	Description
Series:	B82724V2203
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	17A
DC Resistance (DCR) (Max):	3.2mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.299" L x 0.906" W (33.00mm x 23.00mm)
Height (Max):	1.181" (30.00mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
