TCM0605T-080-2P-T201

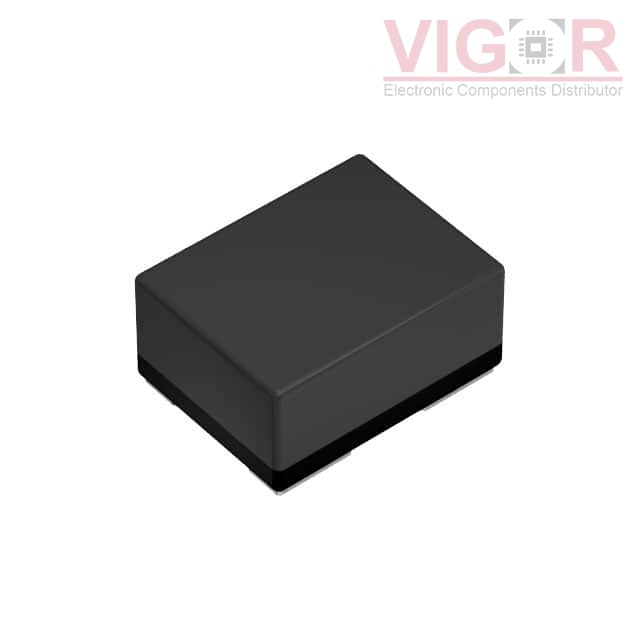

Image is for reference,
please contact us to get the real picture

Part No :: TCM0605T-080-2P-T201

Manufacturer: TDK Corporation

Description: COMMON MODE FILTERS FOR HIGH SPE

Catalog: Common Mode Chokes

DataSheet: TCM0605T-080-2P-T201 PDF

Availability: 0 pieces

Unit Price: ~~$0.31000~~

Current price of TCM0605T-080-2P-T201 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TCM0605T-080-2P-T201 Specifications

Type	Description
Series:	TCM-T
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	8 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	2Ohm
Voltage Rating - DC:	10V
Voltage Rating - AC:	-
Operating Temperature:	-25°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.026" L x 0.020" W (0.65mm x 0.50mm)
Height (Max):	0.014" (0.35mm)
Package / Case:	0202 (0505 Metric), 4 PC Pad
