RT8522-20-3M0

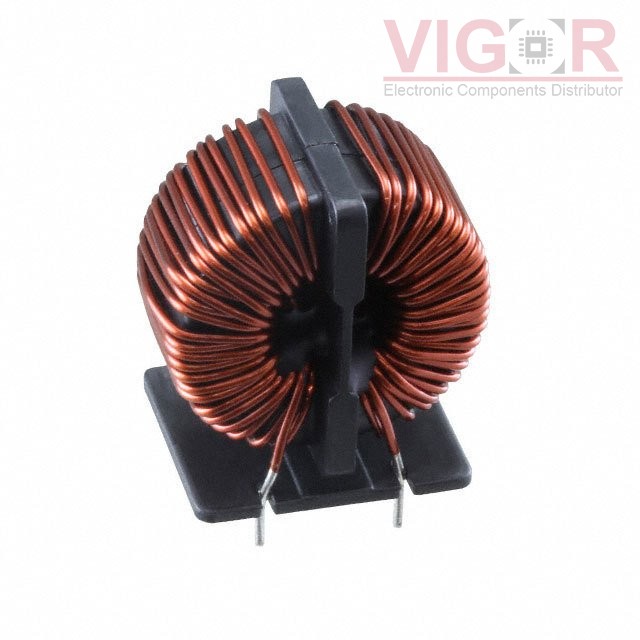

Image is for reference,
please contact us to get the real picture

Part No :: RT8522-20-3M0

Manufacturer: Schaffner EMC, Inc.

Description: COMMON MODE CHOKE 3MH 20A 2LN TH

Catalog: Common Mode Chokes

DataSheet: RT8522-20-3M0 PDF

Availability: 28 pieces

Unit Price: ~~$10.64000~~

Current price of RT8522-20-3M0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RT8522-20-3M0 Specifications

Type	Description
Series:	RT
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	20A
DC Resistance (DCR) (Max):	7mOhm (Typ)
Voltage Rating - DC:	425V
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	2.205" L x 1.260" W (56.00mm x 32.00mm)
Height (Max):	2.244" (57.00mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
