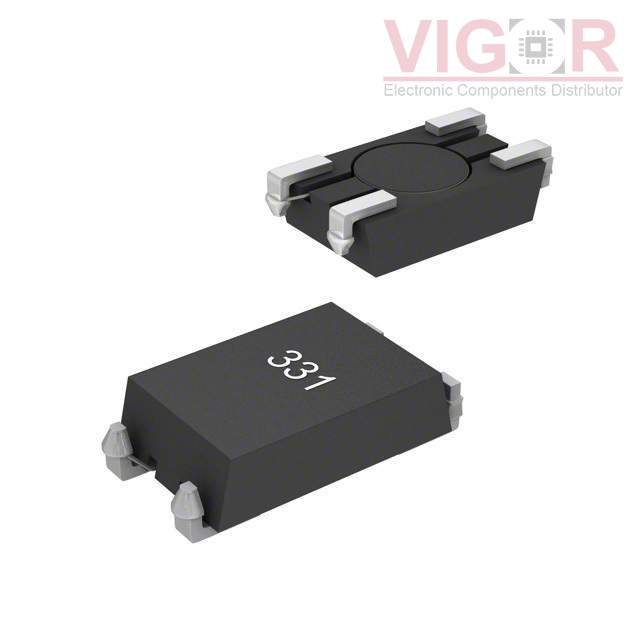

SRF0602-820Y

Image is for reference,
please contact us to get the real picture

Part No :: SRF0602-820Y

Manufacturer: J.W. Miller / Bourns

Description: CMC 82UH 300MA 2LN 220 OHM SMD

Catalog: Common Mode Chokes

DataSheet: SRF0602-820Y PDF

Availability: 996 pieces

Unit Price: ~~$2.18000~~

Current price of SRF0602-820Y is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SRF0602-820Y Specifications

Type	Description
Series:	SRF0602
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	220 Ohms @ 3 MHz
Inductance @ Frequency:	82 µH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	20mOhm
Voltage Rating - DC:	50V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.256" L x 0.142" W (6.50mm x 3.60mm)
Height (Max):	0.071" (1.80mm)
Package / Case:	Horizontal, 4 PC Pad
