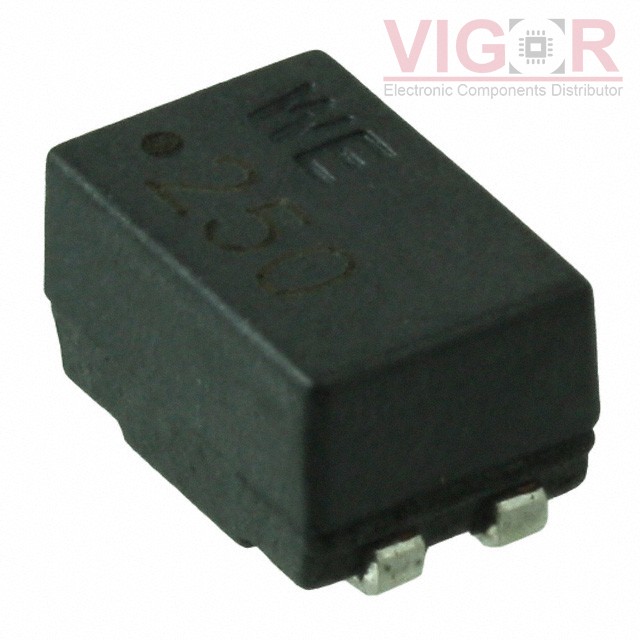

744222

Image is for reference,
please contact us to get the real picture

Part No :: 744222

Manufacturer: Würth Elektronik Midcom

Description: CMC 1MH 800MA 2LN 6 KOHM SMD

Catalog: Common Mode Chokes

DataSheet: 744222 PDF

Availability: 24911 pieces

Unit Price: ~~$2.46000~~

Current price of 744222 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744222 Specifications

Type	Description
Series:	WE-SL2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power, Signal Line
Number of Lines:	2
Impedance @ Frequency:	6 kOhms @ 4 MHz
Inductance @ Frequency:	1 mH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	800mA
DC Resistance (DCR) (Max):	310mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.362" L x 0.236" W (9.20mm x 6.00mm)
Height (Max):	0.209" (5.30mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
