EH20-0.8-02-5M6

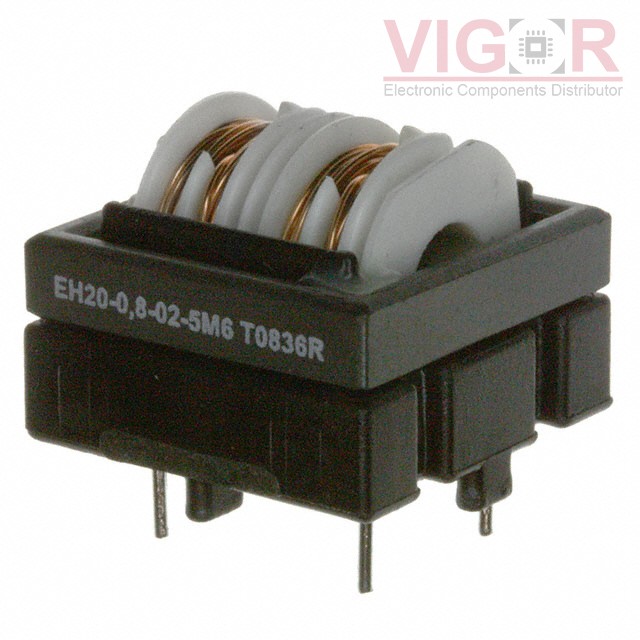

Image is for reference,
please contact us to get the real picture

Part No :: EH20-0.8-02-5M6

Manufacturer: Schaffner EMC, Inc.

Description: CMC 5.6MH 800MA 2LN TH

Catalog: Common Mode Chokes

DataSheet: EH20-0.8-02-5M6 PDF

Availability: 0 pieces

Unit Price: ~~$1.08630~~

Current price of EH20-0.8-02-5M6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EH20-0.8-02-5M6 Specifications

Type	Description
Series:	EH
Package:	Tube
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	5.6 mH @ 400 Hz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	800mA
DC Resistance (DCR) (Max):	245mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 100°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.827" L x 0.827" W (21.00mm x 21.00mm)
Height (Max):	0.740" (18.80mm)
Package / Case:	Horizontal, 4 PC Pin
