CM6296-253

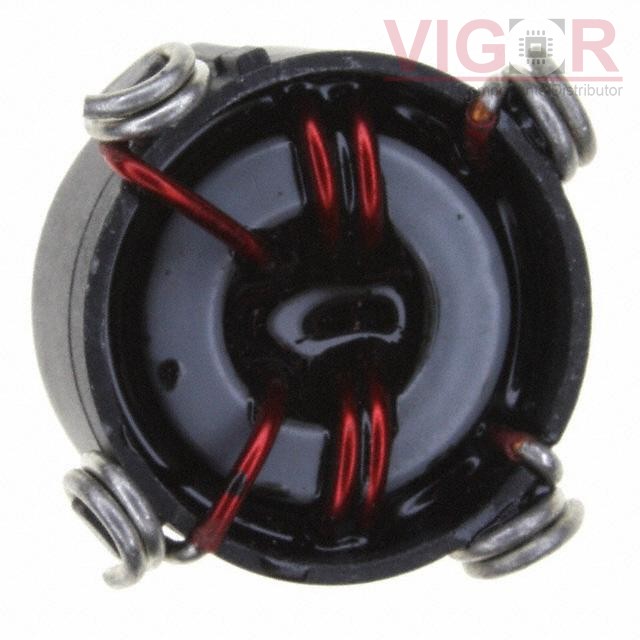

Image is for reference,
please contact us to get the real picture

Part No :: CM6296-253

Manufacturer: API Delevan

Description: CMC 25UH 10A 2LN SMD

Catalog: Common Mode Chokes

DataSheet: CM6296-253 PDF

Availability: 0 pieces

Unit Price: ~~$8.97363~~

Current price of CM6296-253 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CM6296-253 Specifications

Type	Description
Series:	CM6296
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	25 µH @ 1 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	10A
DC Resistance (DCR) (Max):	14mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	1.058" L x 1.058" W (26.87mm x 26.87mm)
Height (Max):	0.423" (10.74mm)
Package / Case:	Horizontal, 4 PC Pad
