CMS1-1-R

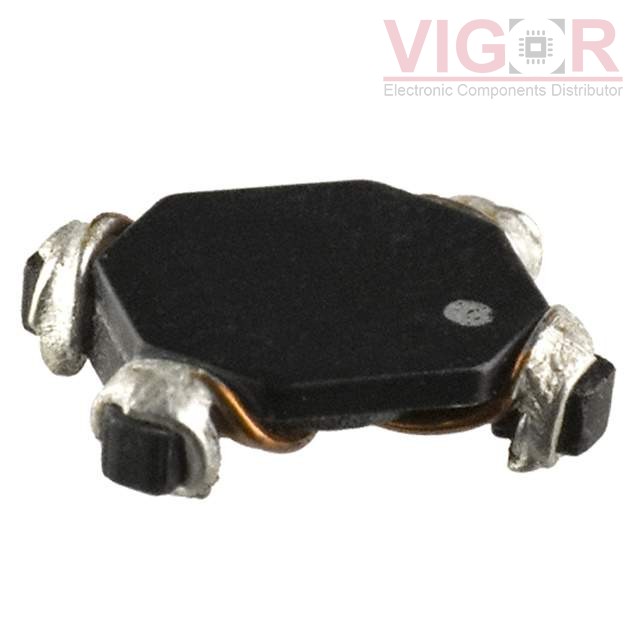

Image is for reference,
please contact us to get the real picture

Part No :: CMS1-1-R

Manufacturer: PowerStor (Eaton)

Description: CMC 4.5UH 7A 2LN SMD

Catalog: Common Mode Chokes

DataSheet: CMS1-1-R PDF

Availability: 0 pieces

Unit Price: ~~$3.68000~~

Current price of CMS1-1-R is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CMS1-1-R Specifications

Type	Description
Series:	CMS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	4.5 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	7A
DC Resistance (DCR) (Max):	2.7mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 160°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.370" L x 0.283" W (9.40mm x 7.20mm)
Height (Max):	0.102" (2.60mm)
Package / Case:	Horizontal, 4 PC Pad

Please confirm the specifications of the products when ordering.
