ACM9070-701-2PL-TL01

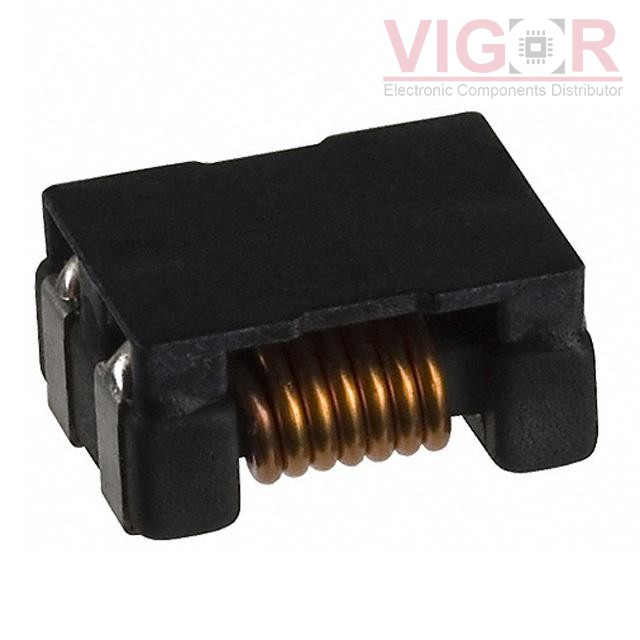

Image is for reference,
please contact us to get the real picture

Part No :: ACM9070-701-2PL-TL01

Manufacturer: TDK Corporation

Description: CMC 5A 2LN 700 OHM SMD

Catalog: Common Mode Chokes

DataSheet: ACM9070-701-2PL-TL01 PDF

Availability: 21173 pieces

Unit Price: ~~$1.79000~~

Current price of ACM9070-701-2PL-TL01 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ACM9070-701-2PL-TL01 Specifications

Type	Description
Series:	ACM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	700 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	5A
DC Resistance (DCR) (Max):	10mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.354" L x 0.276" W (9.00mm x 7.00mm)
Height (Max):	0.177" (4.50mm)
Package / Case:	Horizontal, 4 PC Pad
