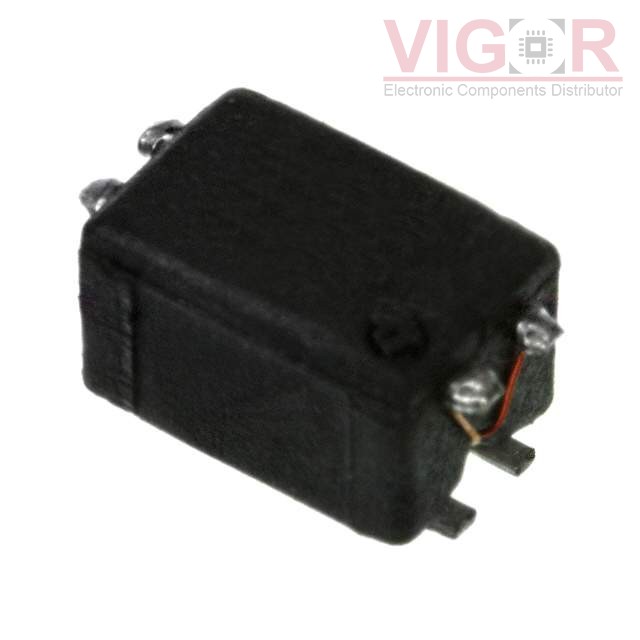

744242220

Part No :: 744242220

Manufacturer: Würth Elektronik Midcom

VIGOR # :: 4037260

Description: CMC 22UH 300MA 2LN 1.5 KOHM SMD

Catalog: Common Mode Chokes

DataSheet: 744242220 PDF

Country of origin: -

Date code: -

744242220 Specifications

Type	Description
Series:	WE-SLM
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	1.5 kOhms @ 65 MHz
Inductance @ Frequency:	22 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	300mA
DC Resistance (DCR) (Max):	230mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.236" L x 0.130" W (6.00mm x 3.30mm)
Height (Max):	0.138" (3.50mm)
Package / Case:	Horizontal, 4 Flat Lead

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 255

Shipped from

HK warehouse

Expected Shipping Date

May 18 - May 22 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.3700~~	~~$3.37~~
500	~~$2.3496~~	~~$1 174.78~~

Current price of 744242220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

CMT-8111-B

COMMON MODE CHOKE 12MH 4A 2LN TH

SRF2012A-161YA

CMC 350MA 2LN 160OHM SMD AECQ200

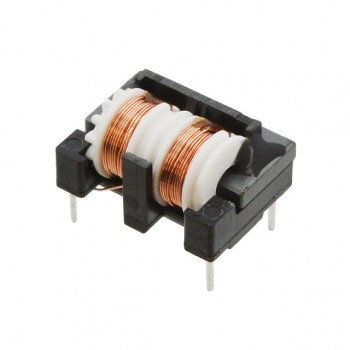

LF1290NP-222
