PA4339.102NLT

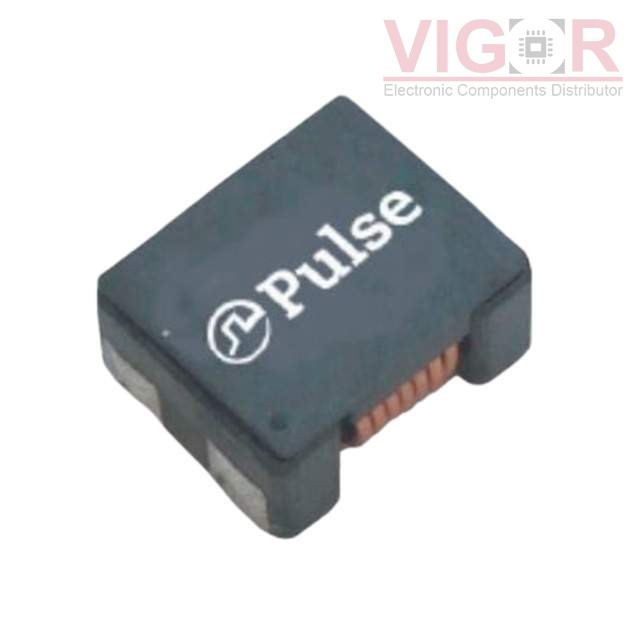

Image is for reference,
please contact us to get the real picture

Part No :: PA4339.102NLT

Manufacturer: PulseLarsen Antenna

Description: COMMON MODE CHOKE 8.0UH 3A

Catalog: Common Mode Chokes

DataSheet: PA4339.102NLT PDF

Availability: 0 pieces

Unit Price: ~~$0.80325~~

Current price of PA4339.102NLT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PA4339.102NLT Specifications

Type	Description
Series:	PA4339
Package:	Tape & Reel (TR)
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	1.02 kOhms @ 100 MHz
Inductance @ Frequency:	8 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	3A
DC Resistance (DCR) (Max):	17mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.276" L x 0.236" W (7.00mm x 6.00mm)
Height (Max):	0.150" (3.80mm)
Package / Case:	Horizontal, 4 PC Pad
