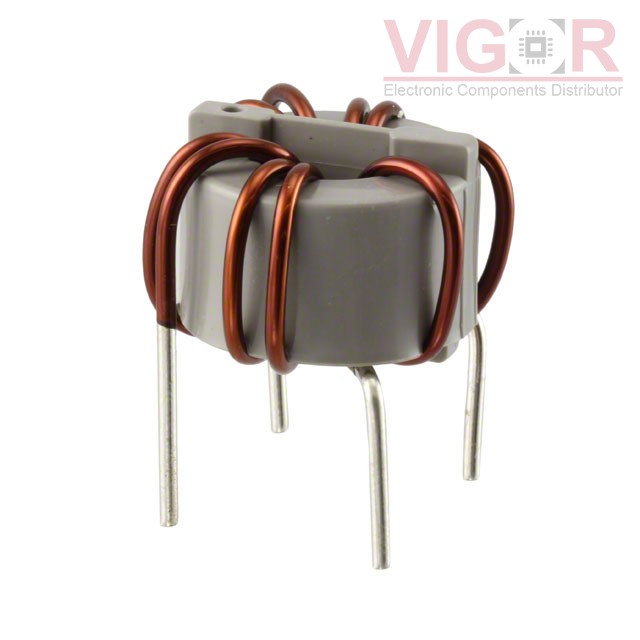

SC-20-D010

Image is for reference,
please contact us to get the real picture

Part No :: SC-20-D010

Manufacturer: KEMET

Description: CMC 10UH 20A 2LN TH

Catalog: Common Mode Chokes

DataSheet: SC-20-D010 PDF

Availability: 328 pieces

Unit Price: ~~$6.00000~~

Current price of SC-20-D010 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SC-20-D010 Specifications

Type	Description
Series:	SC
Package:	Bulk
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	10 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	20A
DC Resistance (DCR) (Max):	8mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	-25°C ~ 105°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.339" Dia (34.00mm)
Height (Max):	0.906" (23.00mm)
Package / Case:	Horizontal, No Base, 4 PC Pin

Please confirm the specifications of the products when ordering.
