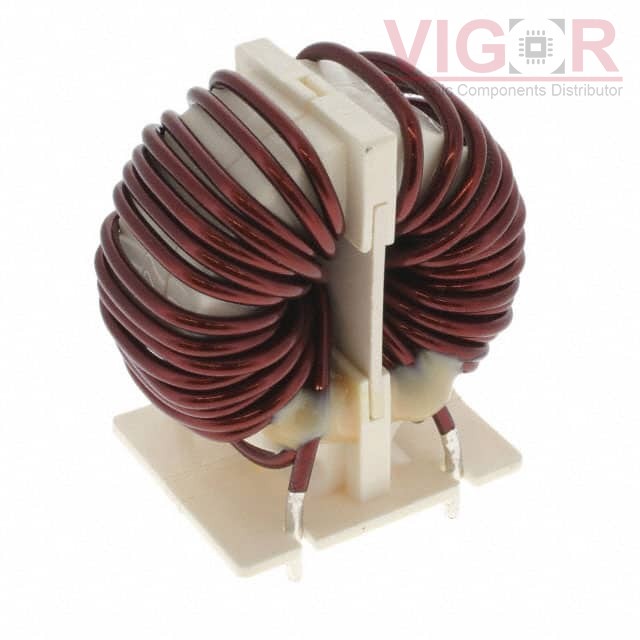

SC-18-25J

Image is for reference,
please contact us to get the real picture

Part No :: SC-18-25J

Manufacturer: KEMET

Description: CMC 2.5MH,20A, 0.01OHM

Catalog: Common Mode Chokes

DataSheet: SC-18-25J PDF

Availability: 112 pieces

Unit Price: ~~$9.11000~~

Current price of SC-18-25J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SC-18-25J Specifications

Type	Description
Series:	*
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	2.5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	18A
DC Resistance (DCR) (Max):	10mOhm
Voltage Rating - DC:	250V
Voltage Rating - AC:	250V
Operating Temperature:	25°C ~ 120°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.732" L x 1.181" W (44.00mm x 30.00mm)
Height (Max):	1.732" (44.00mm)
Package / Case:	Vertical, 4 PC Pin

Please confirm the specifications of the products when ordering.
