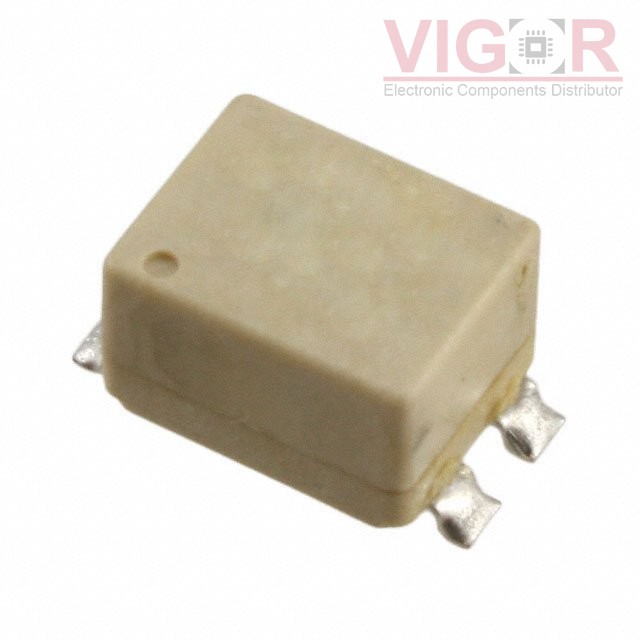

CPFC74NP-PS03H2A25

Part No :: CPFC74NP-PS03H2A25

Manufacturer: Sumida Corporation

Description: CMC 2.5A 2LN 300 OHM SMD

Catalog: Common Mode Chokes

DataSheet: CPFC74NP-PS03H2A25 PDF

Availability: 0 pieces

Current price of CPFC74NP-PS03H2A25 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CPFC74NP-PS03H2A25 Specifications

Type	Description
Series:	CPFC
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	300 Ohms @ 160 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	2.5A
DC Resistance (DCR) (Max):	120mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.374" L x 0.224" W (9.50mm x 5.70mm)
Height (Max):	0.200" (5.08mm)
Package / Case:	Vertical, 4 Gull Wing
