RN142-1-02-33M

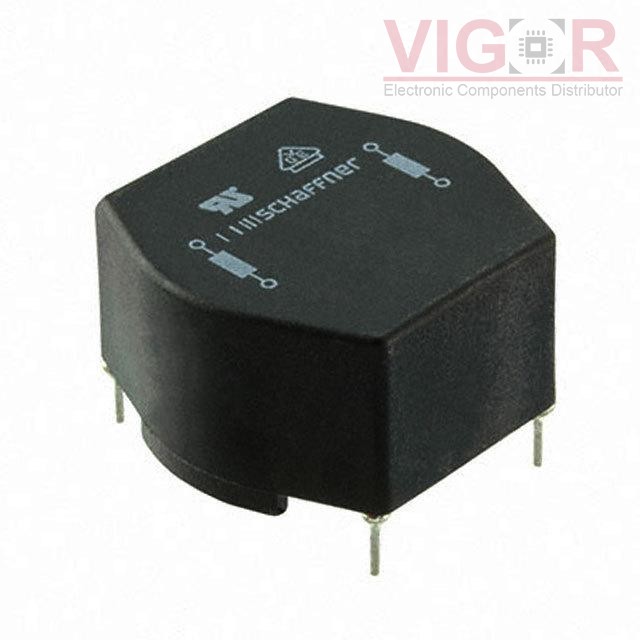

Image is for reference,
please contact us to get the real picture

Part No :: RN142-1-02-33M

Manufacturer: Schaffner EMC, Inc.

Description: CMC 33MH 1A 2LN TH

Catalog: Common Mode Chokes

DataSheet: RN142-1-02-33M PDF

Availability: 455 pieces

Unit Price: ~~$3.16000~~

Current price of RN142-1-02-33M is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RN142-1-02-33M Specifications

Type	Description
Series:	RN
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	33 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1A
DC Resistance (DCR) (Max):	810mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 100°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	1.303" L x 1.280" W (33.10mm x 32.50mm)
Height (Max):	0.787" (20.00mm)
Package / Case:	Horizontal, 4 PC Pin
