DLP0NSA150HL2L

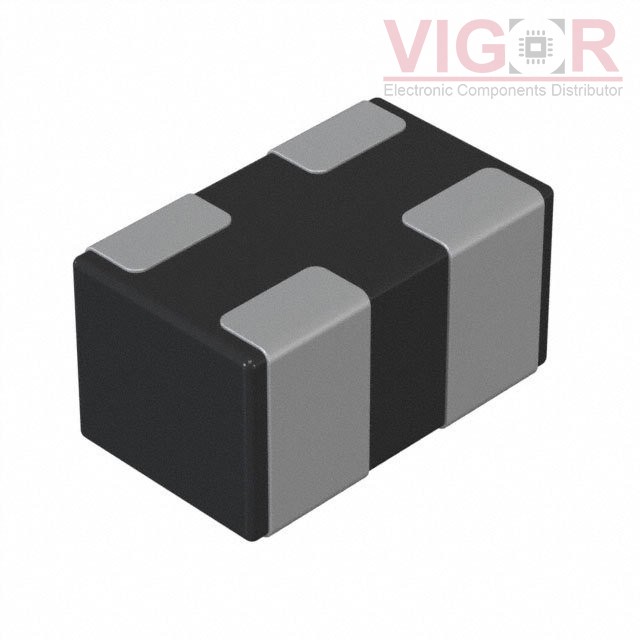

Image is for reference,
please contact us to get the real picture

Part No :: DLP0NSA150HL2L

Manufacturer: TOKO / Murata

Description: CMC 100MA 2LN 15 OHM SMD

Catalog: Common Mode Chokes

DataSheet: DLP0NSA150HL2L PDF

Availability: 0 pieces

Unit Price: ~~$0.25242~~

Current price of DLP0NSA150HL2L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DLP0NSA150HL2L Specifications

Type	Description
Series:	DLP0N
Package:	Tape & Reel (TR)
Part Status:	Not For New Designs
Filter Type:	Signal Line
Number of Lines:	2
Impedance @ Frequency:	15 Ohms @ 100 MHz
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	100mA
DC Resistance (DCR) (Max):	1.19Ohm
Voltage Rating - DC:	5V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 85°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.033" L x 0.026" W (0.85mm x 0.65mm)
Height (Max):	0.020" (0.50mm)
Package / Case:	0302 (0806 Metric), 4 Lead

Please confirm the specifications of the products when ordering.
