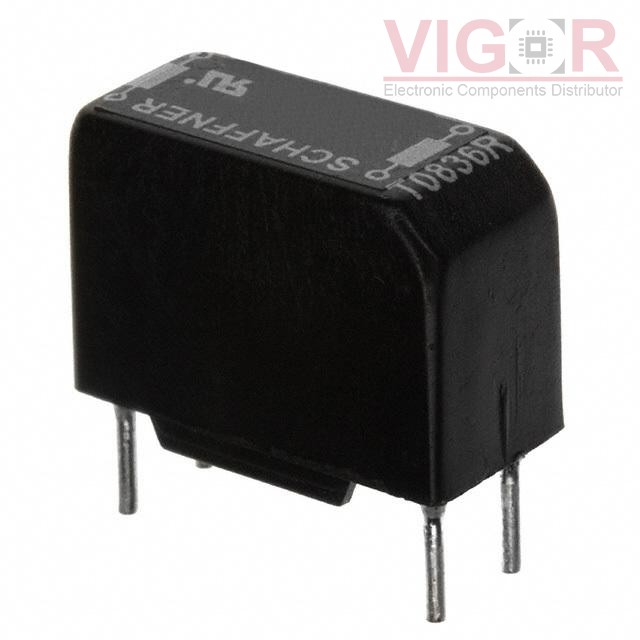

RN202-1-02-3M0

Image is for reference,
please contact us to get the real picture

Part No :: RN202-1-02-3M0

Manufacturer: Schaffner EMC, Inc.

Description: CMC 3MH 1A 2LN TH

Catalog: Common Mode Chokes

DataSheet: RN202-1-02-3M0 PDF

Availability: 566 pieces

Unit Price: ~~$1.76000~~

Current price of RN202-1-02-3M0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RN202-1-02-3M0 Specifications

Type	Description
Series:	RN
Package:	Tray
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	3 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1A
DC Resistance (DCR) (Max):	210mOhm (Typ)
Voltage Rating - DC:	-
Voltage Rating - AC:	300V
Operating Temperature:	-40°C ~ 100°C
Ratings:	-
Approval Agency:	ENEC, UR, VDE
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	0.717" L x 0.346" W (18.20mm x 8.80mm)
Height (Max):	0.543" (13.80mm)
Package / Case:	Vertical, 4 PC Pin
