B82792C2474N315

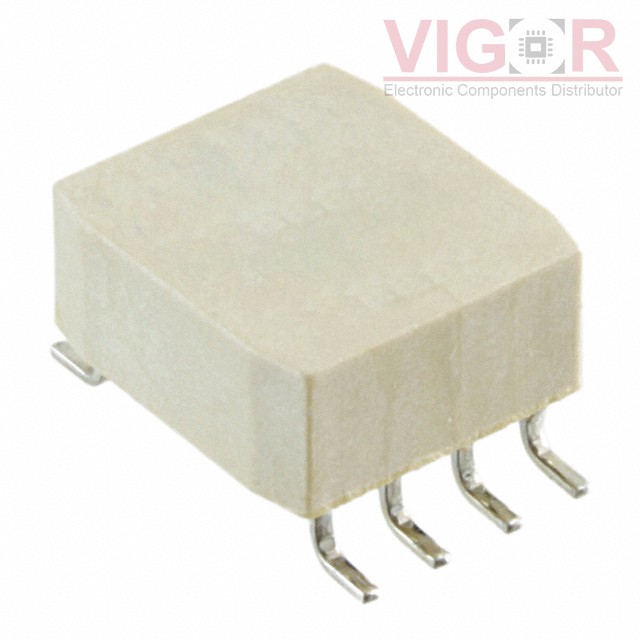

Image is for reference,
please contact us to get the real picture

Part No :: B82792C2474N315

Manufacturer: TDK EPCOS

Description: CMC 470UH 600MA 4LN SMD

Catalog: Common Mode Chokes

DataSheet: B82792C2474N315 PDF

Availability: 1083 pieces

Unit Price: ~~$4.35000~~

Current price of B82792C2474N315 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

B82792C2474N315 Specifications

Type	Description
Series:	B82792
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Signal Line
Number of Lines:	4
Impedance @ Frequency:	-
Inductance @ Frequency:	470 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	600mA
DC Resistance (DCR) (Max):	220mOhm (Typ)
Voltage Rating - DC:	80V
Voltage Rating - AC:	42V
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.453" L x 0.413" W (11.50mm x 10.50mm)
Height (Max):	0.287" (7.30mm)
Package / Case:	Horizontal, 8 Gull Wing
