744290152

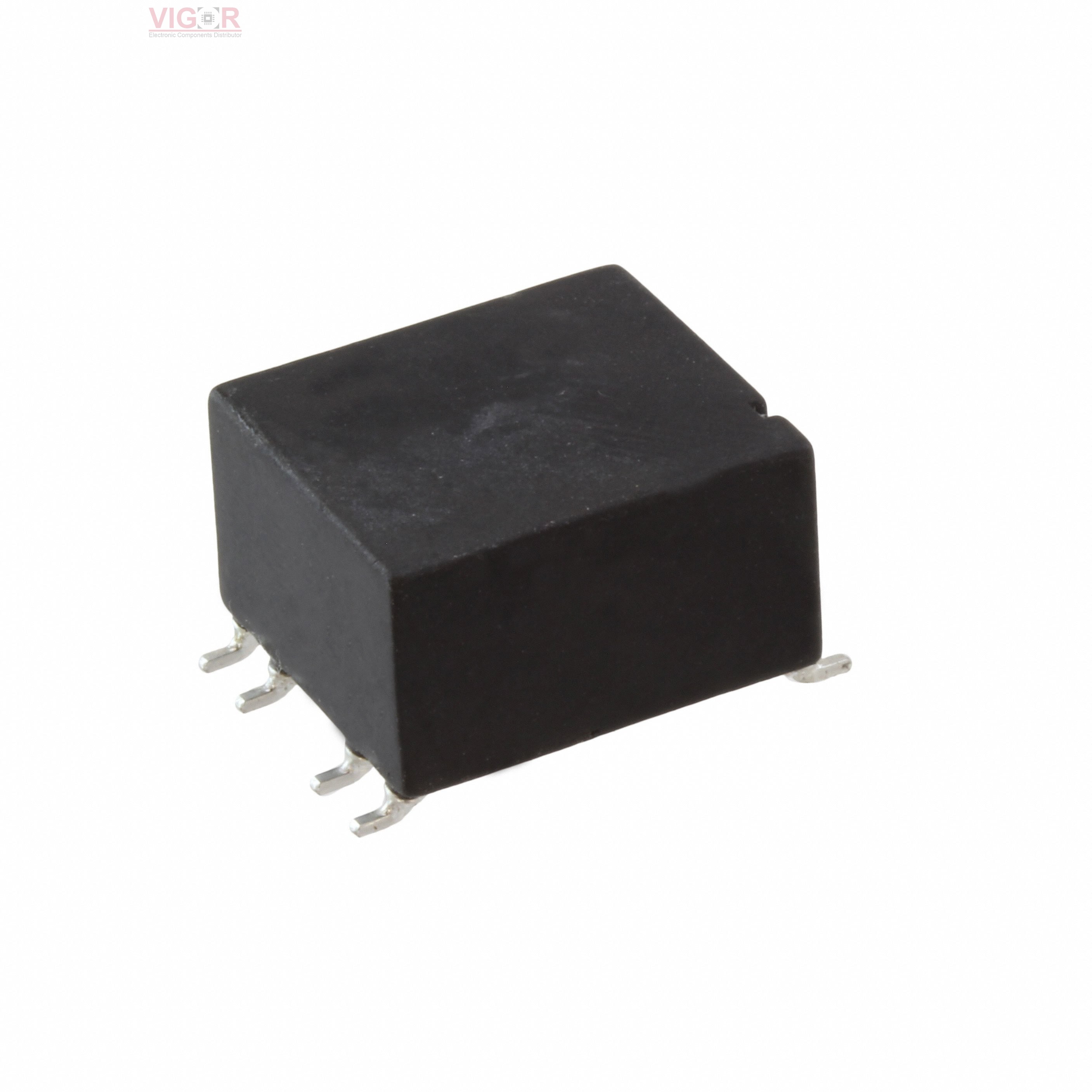

Image is for reference,
please contact us to get the real picture

Part No :: 744290152

Manufacturer: Würth Elektronik Midcom

Description: CMC 1.5MH 1.5A 2LN SMD

Catalog: Common Mode Chokes

DataSheet: 744290152 PDF

Availability: 859 pieces

Unit Price: ~~$4.35000~~

Current price of 744290152 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

744290152 Specifications

Type	Description
Series:	WE-UCF
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power, Signal Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	1.5 mH @ 10 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	1.5A
DC Resistance (DCR) (Max):	120mOhm
Voltage Rating - DC:	80V
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	0.571" L x 0.492" W (14.50mm x 12.50mm)
Height (Max):	0.307" (7.80mm)
Package / Case:	Horizontal, 4 Flat Lead
