SHBC24W-2R1A0311V

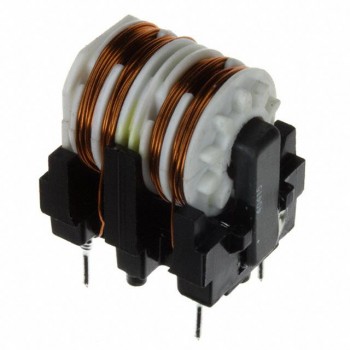

Image is for reference,
please contact us to get the real picture

Part No :: SHBC24W-2R1A0311V

Manufacturer: KEMET

Description: NMC 182.5UH 15A 0.0201OHM TH

Catalog: Common Mode Chokes

DataSheet: SHBC24W-2R1A0311V PDF

Availability: 11 pieces

Unit Price: ~~$17.25000~~

Current price of SHBC24W-2R1A0311V is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SHBC24W-2R1A0311V Specifications

Type	Description
Series:	SHBC
Package:	Bulk
Part Status:	Active
Filter Type:	-
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	311 µH @ 100 kHz
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	15A
DC Resistance (DCR) (Max):	-
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-40°C ~ 125°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Through Hole
Size / Dimension:	-
Height (Max):	-
Package / Case:	Vertical, No Base, 2 PC Pin
