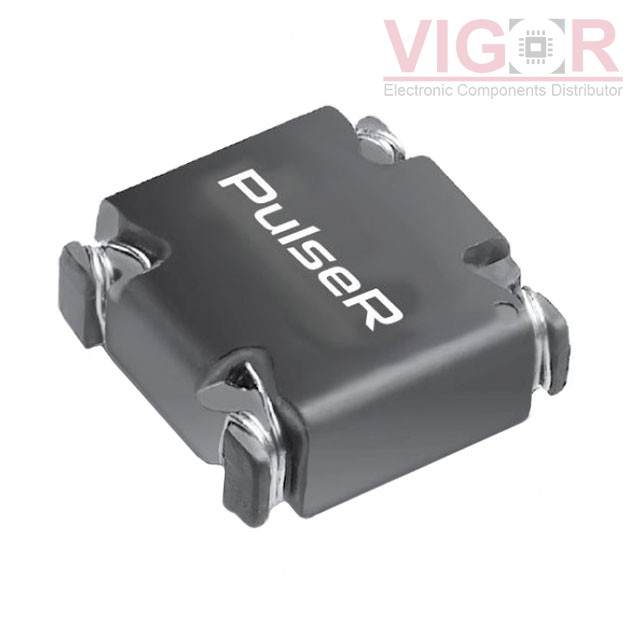

PL8200T

Image is for reference,
please contact us to get the real picture

Part No :: PL8200T

Manufacturer: PulseR (iNRCORE

Description: COMMON MODE CHOKE 14A 2LN SMD

Catalog: Common Mode Chokes

DataSheet: PL8200T PDF

Availability: 26 pieces

Unit Price: ~~$11.86000~~

Current price of PL8200T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PL8200T Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Filter Type:	Power Line
Number of Lines:	2
Impedance @ Frequency:	-
Inductance @ Frequency:	-
Frequency Coupled to Inductance @ Frequency:	-
Current Rating (Max):	14A
DC Resistance (DCR) (Max):	8mOhm
Voltage Rating - DC:	-
Voltage Rating - AC:	-
Operating Temperature:	-55°C ~ 130°C
Ratings:	-
Approval Agency:	-
Features:	-
Mounting Type:	Surface Mount
Size / Dimension:	1.220" L x 1.000" W (30.99mm x 25.40mm)
Height (Max):	0.500" (12.70mm)
Package / Case:	Horizontal, 4 PC Pad
